Glass Cover-Panel Laminating and Cutting Machine
The ZKFM-300 applies protective film to glass cover panels in touch-panel production and cuts the film to separate the laminated pieces.
- Glass cover-panel protective-film application
- Servo-driven traversing film cutter
- Manual upper-roller lift

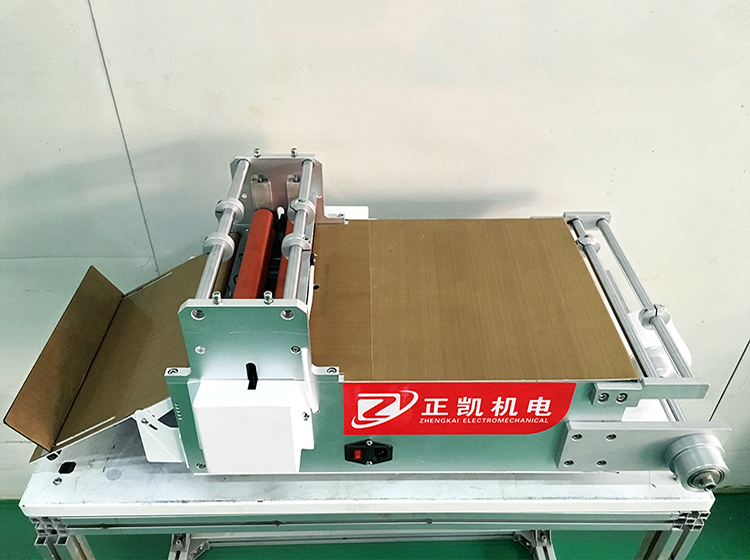

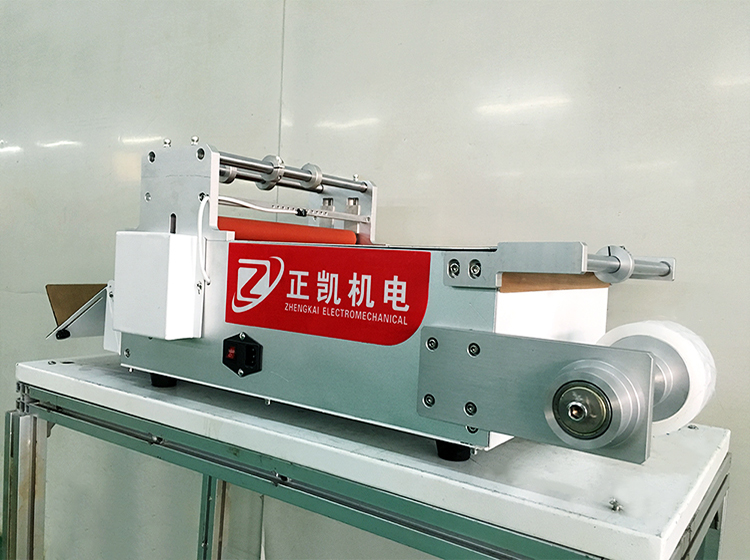

Product Images
Product Introduction
The ZKFM-300 applies protective film to glass cover panels in touch-panel production and cuts the film to separate the laminated pieces.
The documented configuration uses silicone laminating rollers, a manually raised upper roller and a servo-driven traversing cutter. A locating plate and movable side stop position the glass cover panel.
PLC and operator-interface controls support setup. The specified film allowance is 5–10 mm at the leading and trailing edges. Share the glass dimensions and protective-film requirements to confirm the suitable configuration.
Features and Operation
- Glass cover-panel protective-film application
- Servo-driven traversing film cutter
- Manual upper-roller lift
Technical Specifications
- Cut length
- 200–600 mm
- Cutting speed
- 0–10 m/min
- Laminating roller diameter
- 42 mm
- Film allowance at leading/trailing edges
- 5–10 mm
- Control system
- PLC and operator interface
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 0.5 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
