Double-Door Industrial Hot-Air Oven
The ZKMO-10 is a double-door industrial oven for material aging, silver-paste curing and ink drying in electronic, touch-panel and LCD production.
- Double-door chamber
- Horizontal hot-air circulation
- PID temperature control with SSR output

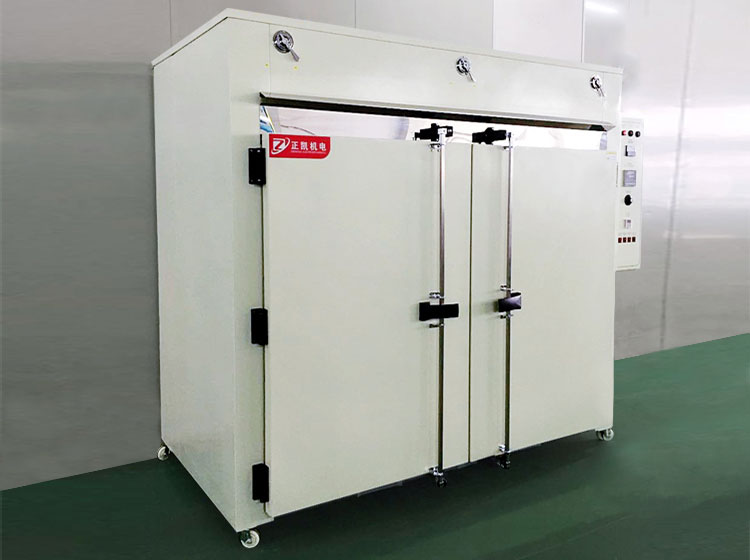

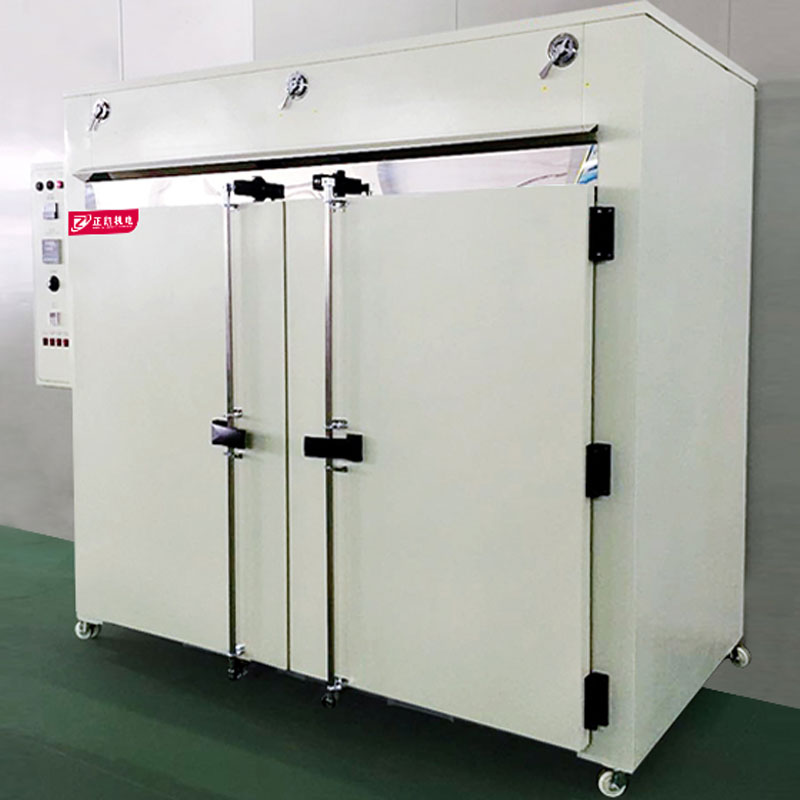

Product Images
Product Introduction
The ZKMO-10 is a double-door industrial oven for material aging, silver-paste curing and ink drying in electronic, touch-panel and LCD production.
The documented chamber measures 1800 × 1400 × 1400 mm (width × depth × height), with a temperature setting range from ambient to 200 °C. Horizontal airflow distributes heated air through the chamber.
The inner chamber and air ducts use SUS430 stainless steel. PID temperature control with SSR output and an electronic timer support operation. Provide the load, required temperature profile and process conditions to confirm the configuration.
Features and Operation
- Double-door chamber
- Horizontal hot-air circulation
- PID temperature control with SSR output
Technical Specifications
- Temperature setting range
- Ambient to 200 °C
- Chamber dimensions (W × D × H)
- 1800 × 1400 × 1400 mm
- Inner chamber and duct material
- SUS430 stainless steel
- Timer range
- 0–9999 min
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 28 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
