Three-Door Tray Drying Oven

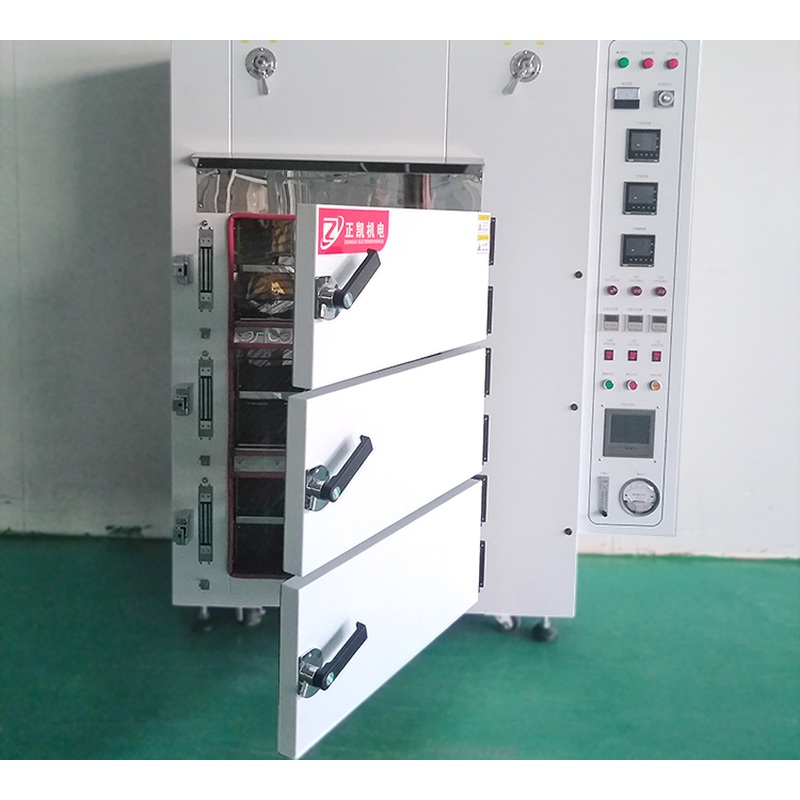

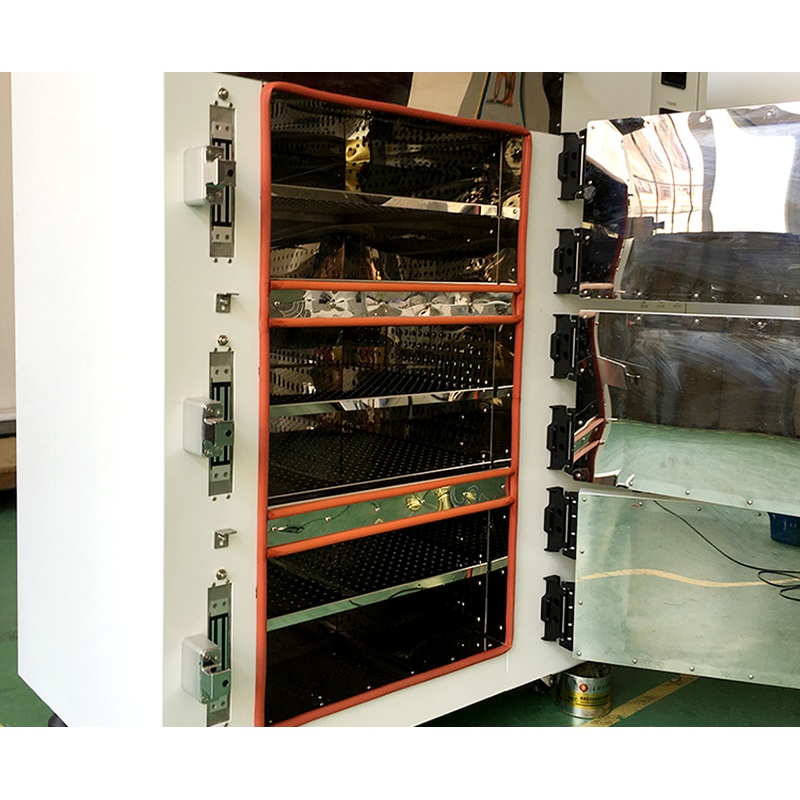

The ZKMO-3S is a tray drying oven for thermal processes in touch-panel, LCD, camera-module and electronics production. Three doors provide access to six shelf levels, with two levels behind each door.
- Three access doors and six shelf levels.
- Roller-supported tray loading.
- Sensing timer switches at tray positions.
Product Images
Product Introduction
The ZKMO-3S is a tray drying oven for thermal processes in touch-panel, LCD, camera-module and electronics production. Three doors provide access to six shelf levels, with two levels behind each door.
Each shelf accommodates two 400 × 300 mm trays. Unpowered rollers support tray movement, and tray positions have sensing timer switches that allow a time to be set with a completion indication. The oven uses single-sided horizontal airflow.
The documented temperature range is ambient to 150 °C, with 90 °C listed as a typical setting. Provide the tray layout, material, batch load and temperature profile to review the operating conditions.
Features and Operation
- Three access doors and six shelf levels.
- Roller-supported tray loading.
- Sensing timer switches at tray positions.
Technical Specifications
- Tray size
- 400 × 300 mm
- Shelf levels
- 6
- Trays per level
- 2
- Temperature range
- Ambient to 150 °C
- Typical temperature
- 90 °C
- Airflow
- Single-sided horizontal
- Power supply
- AC 380 V, three-phase, 50 Hz
- Installed power
- 8 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
