UV Curing Conveyor for Printed Surfaces
The ZKUV-752MTC is a UV curing conveyor for printed PET, computer-keyboard components and other printed surfaces.
- Two 7.5 kW metal-halide lamps
- 600 mm conveyor belt
- Adjustable lamp height and output

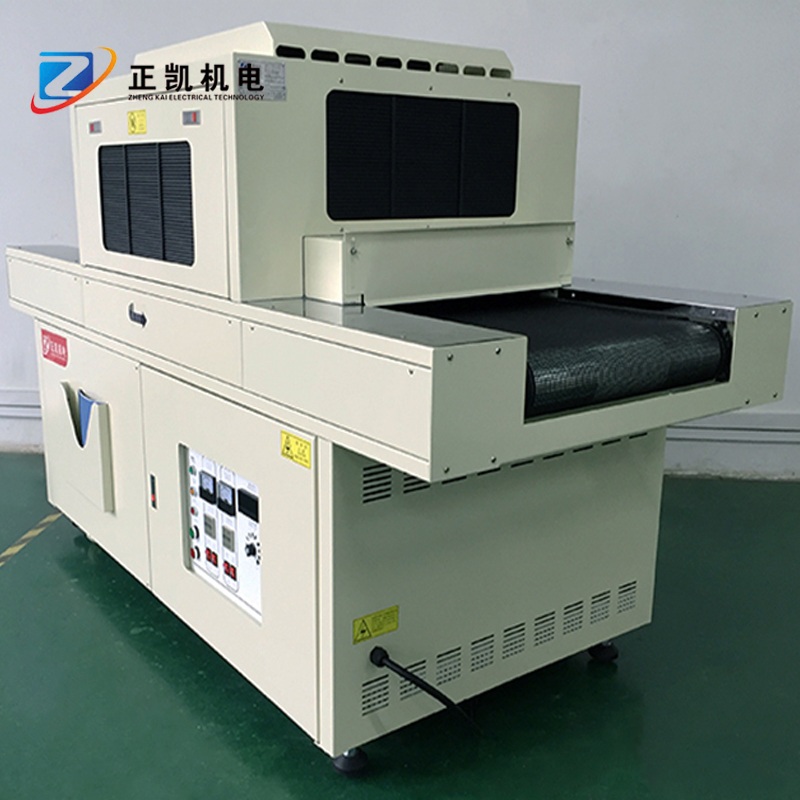

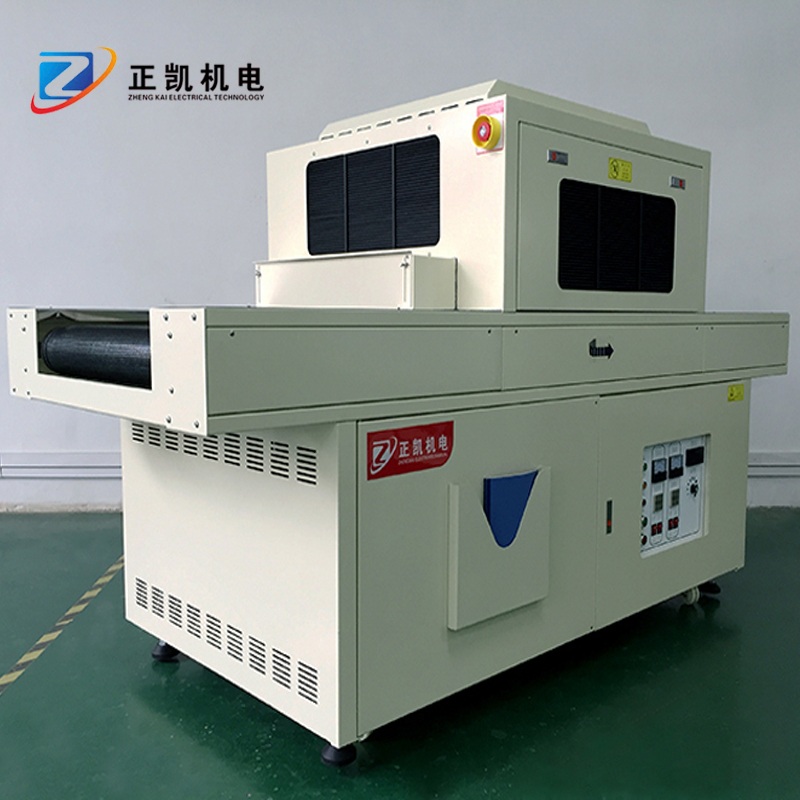

Product Images
Product Introduction
The ZKUV-752MTC is a UV curing conveyor for printed PET, computer-keyboard components and other printed surfaces.
The documented configuration uses two 7.5 kW metal-halide lamps with a 600 mm conveyor belt. Lamp luminous length is 625 mm, and maximum conveyor speed is 12 m/min. Lamp height and high/low output can be adjusted.
The reflector assembly includes a CF cold mirror. A digital speed display, lamp current indication and operating-time meter support operation. Provide the substrate, ink and thermal limits to confirm the curing conditions.
Features and Operation
- Two 7.5 kW metal-halide lamps
- 600 mm conveyor belt
- Adjustable lamp height and output
Technical Specifications
- Conveyor belt width
- 600 mm
- Lamp configuration
- 2 × 7.5 kW
- Lamp luminous length
- 625 mm
- Maximum conveyor speed
- 12 m/min
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 17 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
