Multi-Layer Hot-Air Glass Curing Line

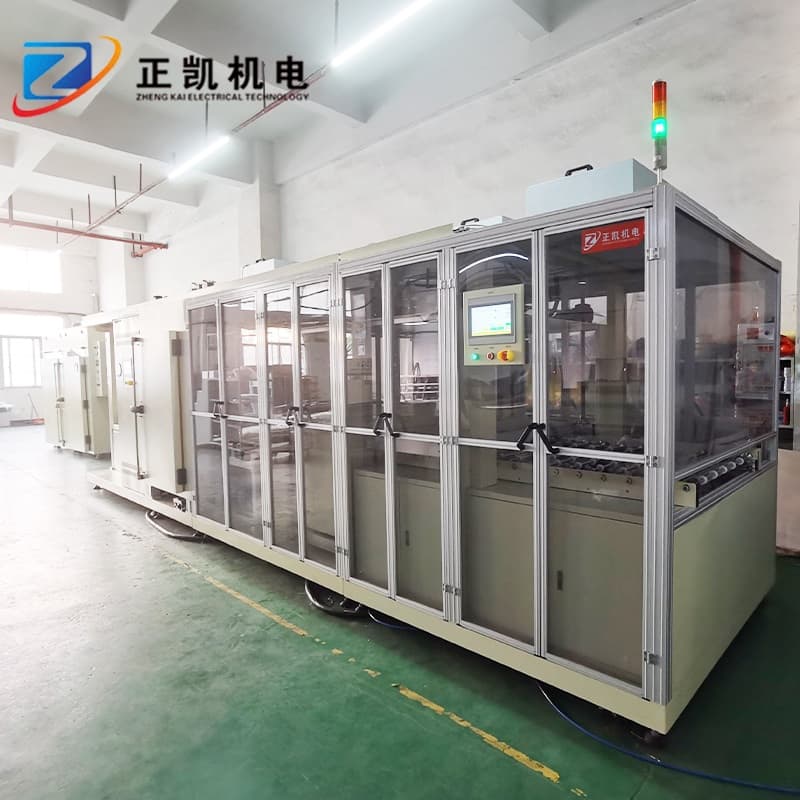

The ZKMOL-820+ bakes coated touch-panel cover glass on glass carrier plates. The documented ZKMOL-820+50HP arrangement combines hot-plate preheating, multi-layer hot-air holding and forced-air cooling.
- Hot-plate preheating and circulating hot-air holding.
- Stacked carrier handling with inlet/outlet rollers.
- Forced-air cooling after the holding stage.
Product Images
Product Introduction
The ZKMOL-820+ bakes coated touch-panel cover glass on glass carrier plates. The documented ZKMOL-820+50HP arrangement combines hot-plate preheating, multi-layer hot-air holding and forced-air cooling.

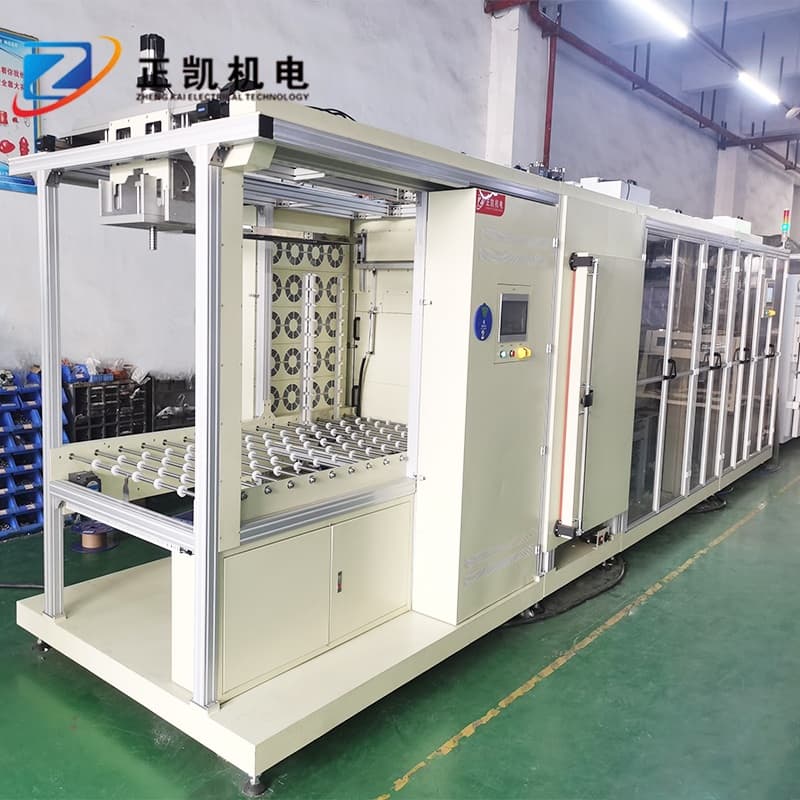

Rollers connect the inlet and outlet to the adjacent equipment. Inside the holding oven, a lifting transfer mechanism and entry/exit manipulators move the carriers through the stacked process arrangement.
The documented process uses approximately three minutes of preheating, thirty minutes of holding and four minutes of cooling. These are configuration-specific values; provide the coating cure profile, carrier size and line cycle requirements to select the operating conditions.
Features and Operation
- Hot-plate preheating and circulating hot-air holding.
- Stacked carrier handling with inlet/outlet rollers.
- Forced-air cooling after the holding stage.
Technical Specifications
- Carrier width
- 820 mm
- Carrier lengths
- 390 / 510 / 760 mm
- Carrier thickness
- 2–5 mm
- Temperature range
- Ambient to 200 °C
- Typical temperature
- 160 °C
- Transfer height
- 900 ±20 mm
- Documented preheating time
- Approx. 3 min
- Documented holding time
- 30 min
- Documented cooling time
- 4 min
Specifications describe the documented configuration. Confirm the final configuration for your application.
