Roll-to-Sheet Cutting and Punching Machine
The ZKL-1100 unwinds PVC material, punches it and cuts it into sheets for lithium-battery material processing.
- PVC roll punching and sheet cutting
- Motor-driven guillotine cutter
- Gripper transfer to the receiving platform

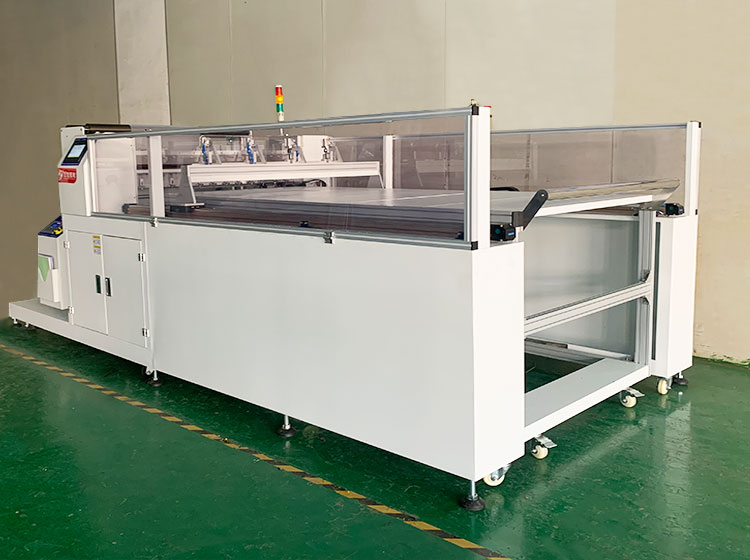

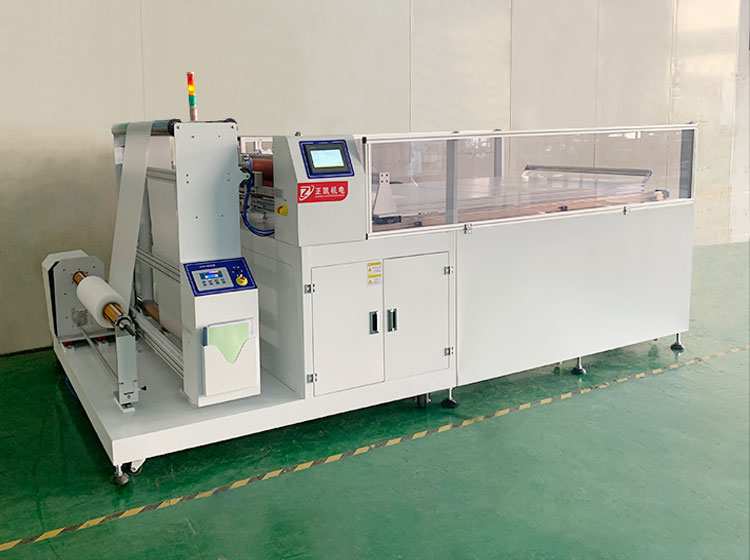

Product Images
Product Introduction
The ZKL-1100 unwinds PVC material, punches it and cuts it into sheets for lithium-battery material processing.
The documented material width is 1100 mm and thickness is 0.1–1 mm. A motor-driven guillotine blade performs the cut, while an outlet gripper transfers the finished piece to a receiving platform.
The feed uses a 3-inch air-expanding shaft and a buffer before the cutting station. PLC and operator-interface controls support setup. Provide the material, hole pattern and sheet dimensions to confirm tooling and handling requirements.
Features and Operation
- PVC roll punching and sheet cutting
- Motor-driven guillotine cutter
- Gripper transfer to the receiving platform
Technical Specifications
- Material width
- 1100 mm
- Material thickness
- 0.1–1 mm
- Documented roll diameter
- 400 mm
- Cutting speed
- 1–8 m/min
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 2 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
