Double-Sided Roll-to-Roll Dry Film Laminator
The ZK-R2R-FM-500 applies dry film to both sides of stainless-steel strip in a roll-to-roll yellow-light process.
- Double-sided dry-film application to steel strip
- Dust removal and preheating before lamination
- Heated laminating rollers

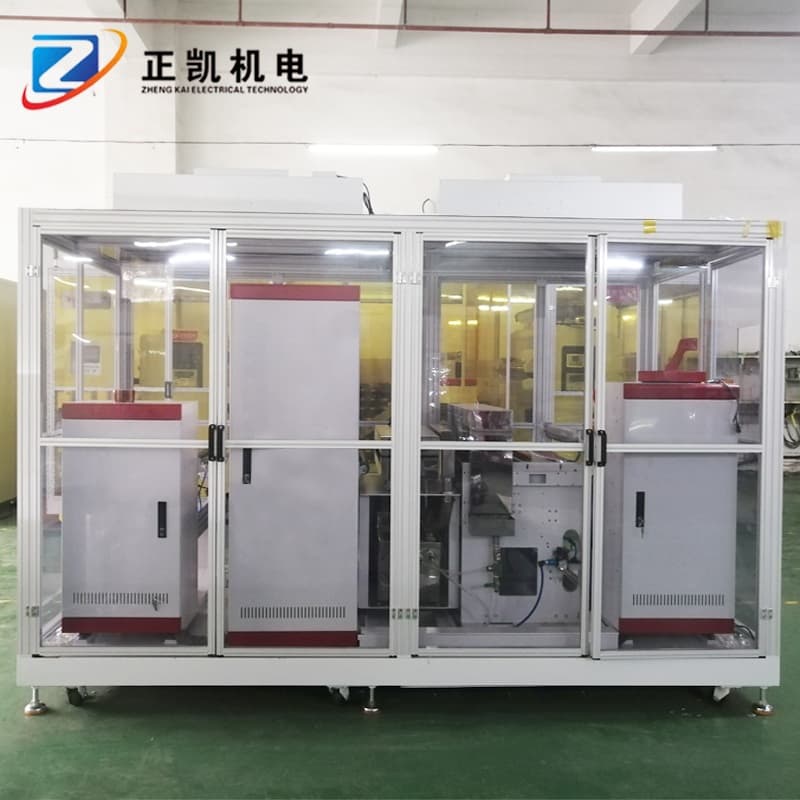

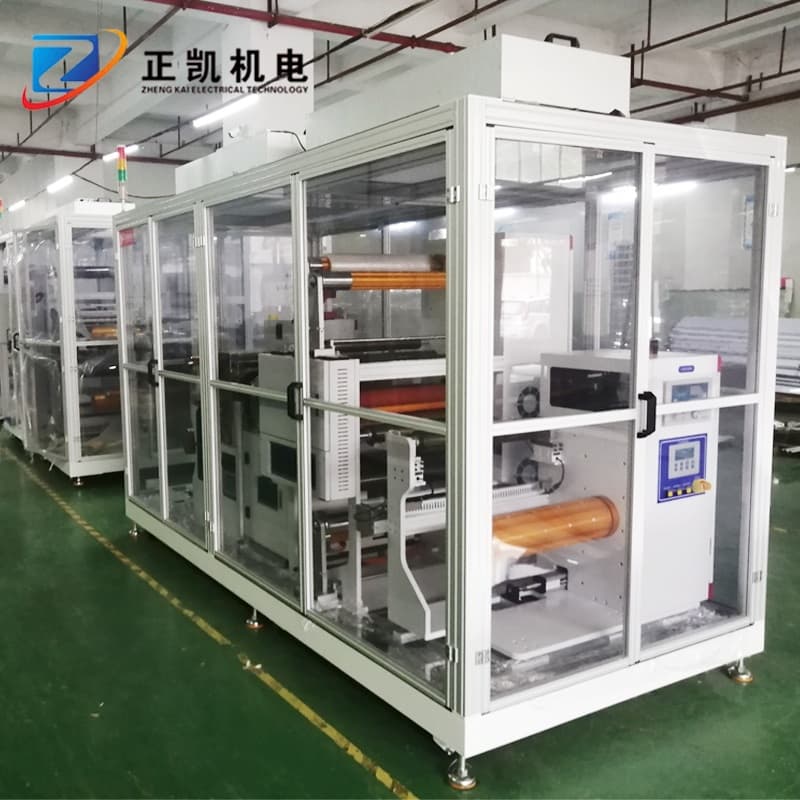

Product Images
Product Introduction
The ZK-R2R-FM-500 applies dry film to both sides of stainless-steel strip in a roll-to-roll yellow-light process.
The documented process includes unwinding, dust removal, preheating, heated-roller lamination and rewinding. Material width is 100–500 mm, with an effective laminating width of 500 mm. Substrate thickness is 0.02–0.03 mm, excluding interleaf paper.
The machine uses one unwind shaft and one rewind shaft, with web guidance and PLC touchscreen control. Separate shafts collect interleaf paper and dry-film release liners. Roll loading and unloading are manual. Provide the steel strip and dry-film specifications to confirm the process settings.
Features and Operation
- Double-sided dry-film application to steel strip
- Dust removal and preheating before lamination
- Heated laminating rollers
Technical Specifications
- Material width
- 100–500 mm
- Effective laminating width
- 500 mm
- Substrate thickness, excluding interleaf
- 0.02–0.03 mm
- Maximum roll diameter
- 450 mm
- Core diameter
- 300 mm
Specifications describe the documented configuration. Confirm the final configuration for your application.
