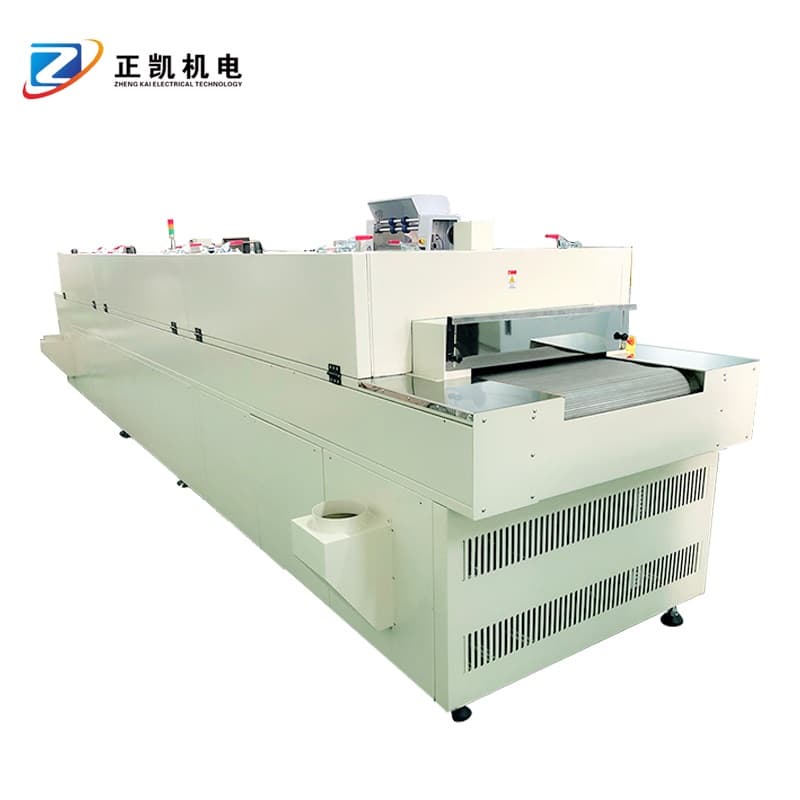

Silicone UV Surface Modification Machine
Continuous UV surface modification for silicone watch bands and other silicone products, with automatic lamp-height adjustment and conveyor tracking.
- Continuous silicone-product treatment
- Automatic lamp-height adjustment
- Automatic stainless-steel conveyor tracking
Specifications
Specifications shown are based on a reviewed configuration. Final specifications are subject to project confirmation.
Swipe horizontally to view all specifications.
| Product Information | |
|---|---|
| Model | ZKUV-5090S |
| Product Type | Silicone UV Surface Modification Machine |
| Reviewed Project Configuration | |
| Reviewed Process | UV surface modification of silicone watch bands |
| Mechanical Configuration | |
| Conveyor Width | 500 mm |
| Process Parameters | |
| Conveyor Speed | 0.2–1 m/min |
| Mechanical Configuration | |
| Working Size | L5000 × W500 × H90 mm |
| UV Configuration | |
| UV Section Length | 4800 mm |
| Mechanical Configuration | |
| Equipment Dimensions | Approx. L6000 × W1100 × H1900 mm |
| Conveyor Height | 880 ±20 mm |
| UV Configuration | |
| Reflector | SUS mirror reflector |
| Material Handling | |
| Conveyor | Stainless-steel mesh with automatic tracking |
| Mechanical Configuration | |
| Approximate Weight | 520 kg |
| Utilities | |
| Power Supply | AC 380 V, three-phase, 50 Hz |
| Installed Power | 10 kW |
Product Details

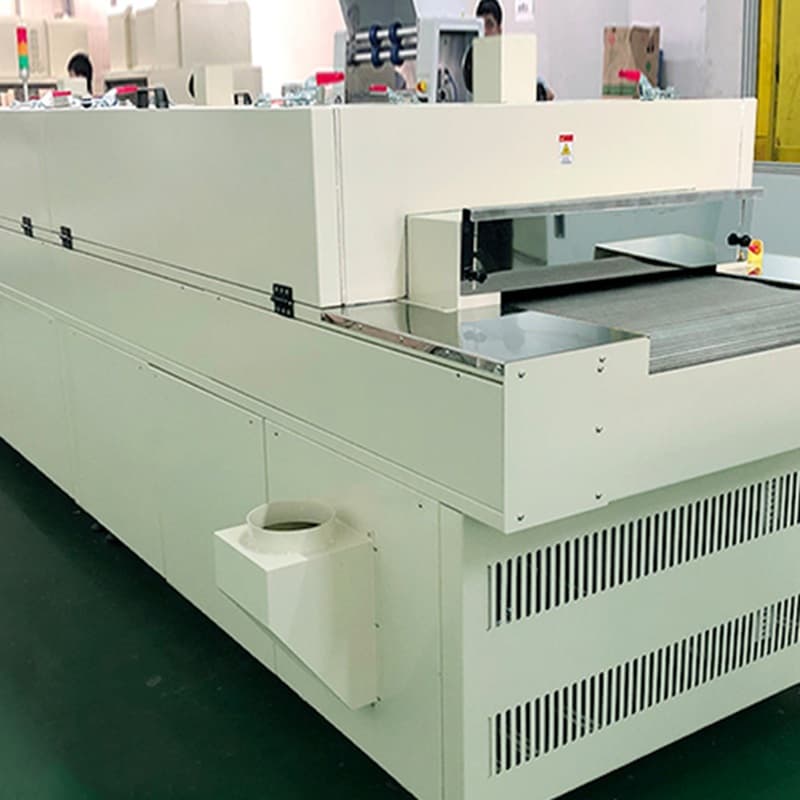

The ZKUV-5090S was developed for continuous UV surface modification of silicone watch bands and can be reviewed for other silicone products. Parts travel through the UV section on a stainless-steel mesh conveyor.
The reviewed configuration uses an automatically adjustable lamp position, automatic conveyor tracking and continuously adjustable speed. The target surface result must be validated with the actual silicone formulation and part geometry.
Features
- Continuous silicone-product treatment
- Automatic lamp-height adjustment
- Automatic stainless-steel conveyor tracking
- Continuously adjustable speed with digital display
Product Advantages
- Continuous conveyorized handling
- Automatic lamp-height adjustment
- Automatic conveyor tracking in the reviewed configuration
Silicone UV Surface Modification

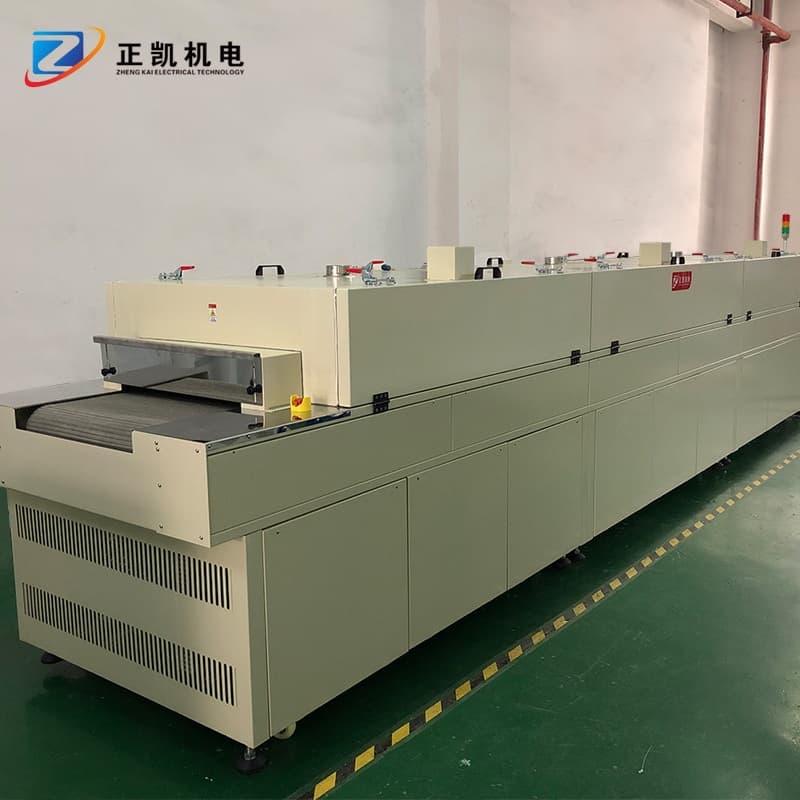

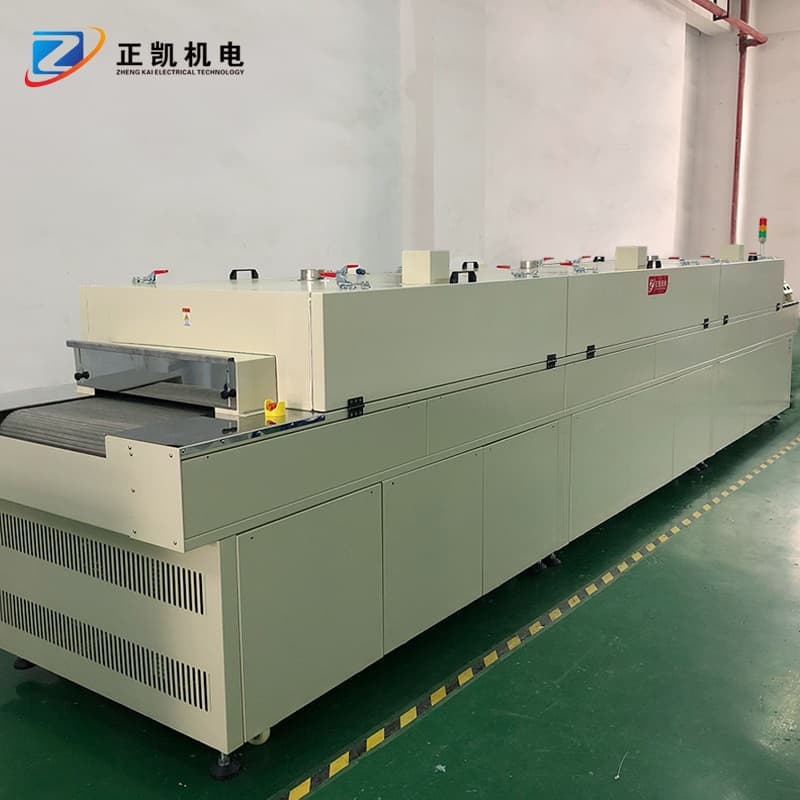

The ZKUV-5090S is documented for continuous processing of silicone watch bands. Its 500 mm stainless-steel mesh conveyor moves parts through a 4800 mm UV section with adjustable lamp position and automatic conveyor tracking.
Sample-Based Process Review
- Provide the silicone formulation, color and molded-part geometry.
- Define the target surface condition and any downstream bonding, printing or assembly step.
- Confirm the loading density, required capacity and available installation space.
- Validate exposure and conveyor settings with representative sample parts.
Performance Scope
Surface feel, dust behavior and static response depend on the silicone formulation, molding condition and UV process settings. Final acceptance criteria are agreed for the project after sample evaluation.
Frequently Asked Questions
Can the UV Surface Modification Machine be configured for a specific process?
Yes. Configuration review begins with the workpiece or material, required process conditions, working dimensions, target capacity, utilities and factory layout.
What information is needed for equipment selection?
Provide the material, workpiece size, process target, operating conditions, production requirement and any available drawings, product photos or specifications.
Are the listed specifications final?
No. Published values are drawn from the available product package. Final dimensions, utilities, options and performance requirements are confirmed for each project.
