Roll-to-Roll Unwinding and Rewinding System
The ZKFHL-400-R2R feeds roll material to downstream processing equipment and rewinds the processed strip. The documented system includes unwinding, buffering and rewinding sections.
- Unwinding, buffering and rewinding
- Vacuum splice table
- Rewinding tension control and web guidance

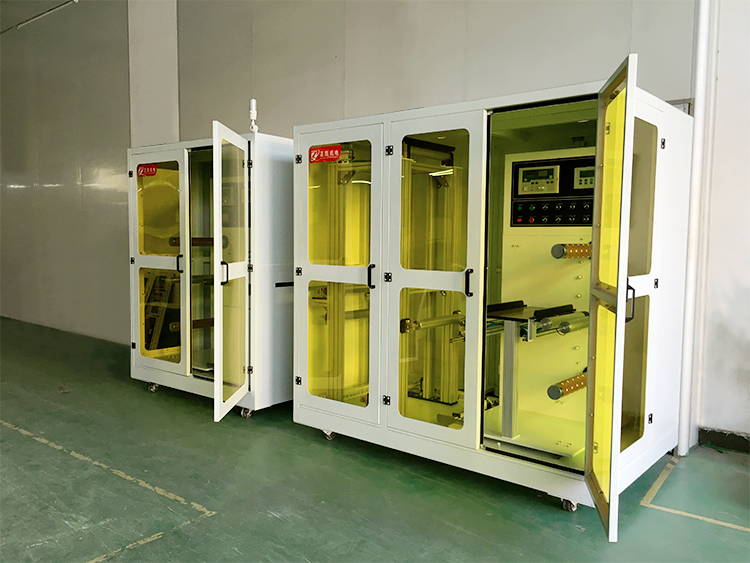

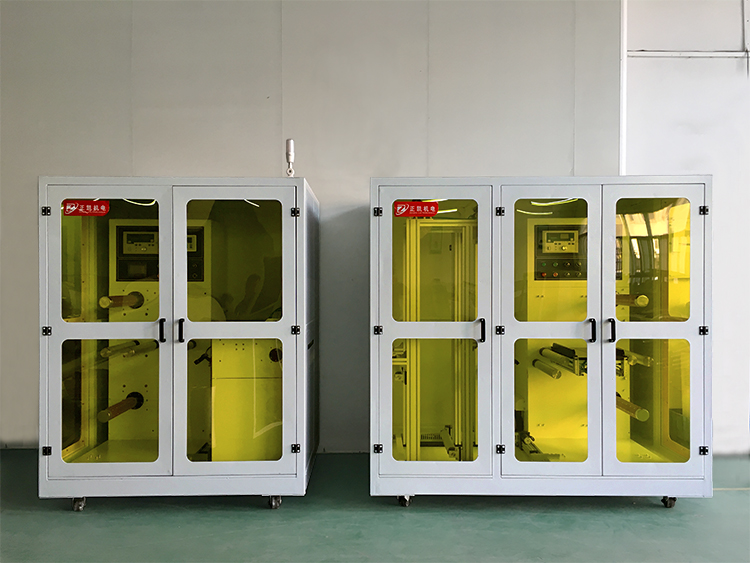

Product Images
Product Introduction
The ZKFHL-400-R2R feeds roll material to downstream processing equipment and rewinds the processed strip. The documented system includes unwinding, buffering and rewinding sections.
The material width is 400 mm, with a maximum roll diameter of 400 mm and a 3-inch core. Documented material thickness is 0.05–0.1 mm. The unwinder includes a vacuum splice table, pneumatic clamping and a material buffer.
The rewinder uses tension sensing, controlled winding torque and web guidance. Unwinder and downstream sections have different conveyor heights, so the final layout must match the process line. Provide the roll material and line interfaces for configuration review.
Features and Operation
- Unwinding, buffering and rewinding
- Vacuum splice table
- Rewinding tension control and web guidance
Technical Specifications
- Material width
- 400 mm
- Maximum roll diameter
- 400 mm
- Core diameter
- 3 in
- Material thickness
- 0.05–0.1 mm
Specifications describe the documented configuration. Confirm the final configuration for your application.
