EVA Footwear UV Irradiation Conveyor
The ZKUV-1014 is a UV irradiation conveyor for EVA materials in footwear production.
- UV irradiation for EVA footwear materials
- Adjustable lamp positions
- Stainless-steel mesh conveyor

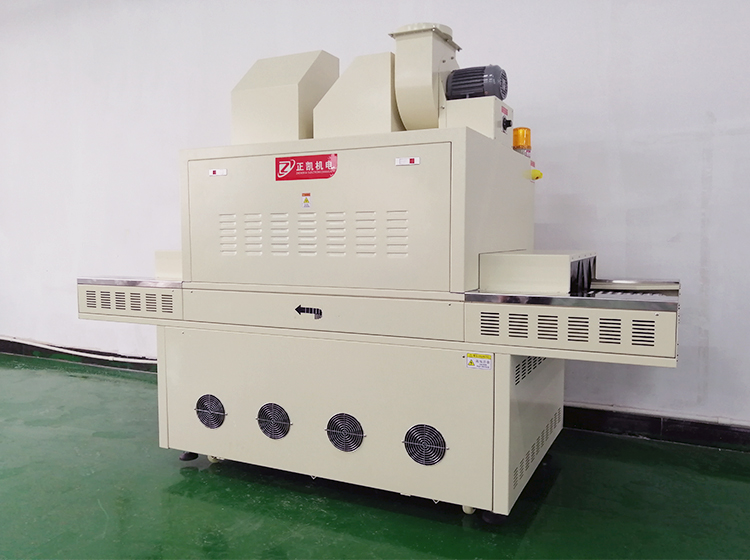

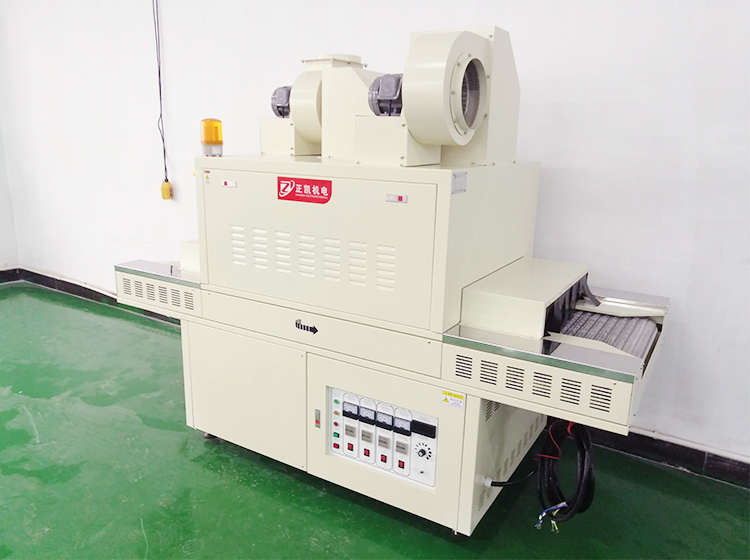

Product Images
Product Introduction
The ZKUV-1014 is a UV irradiation conveyor for EVA materials in footwear production.
The stainless-steel conveyor mesh is 600 mm wide, while the documented effective irradiation width is 250 mm. The source gives a working height of 130 mm and a 1200 mm UV section. Conveyor width and usable irradiation width are different specifications.
The lamp positions can be adjusted vertically and laterally to suit the EVA part, and high/low UV output can be selected. Provide the workpiece geometry and treatment requirement to confirm lamp positioning and transport settings.
Features and Operation
- UV irradiation for EVA footwear materials
- Adjustable lamp positions
- Stainless-steel mesh conveyor
Technical Specifications
- Conveyor mesh width
- 600 mm
- Effective irradiation width
- 250 mm
- Working height
- 130 mm
- UV section length
- 1200 mm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 12 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
