Silicone UV Surface Modification Conveyor
The ZKUV-3090 is a UV surface modification conveyor for silicone products such as watch straps. The documented configuration has a 3200 mm UV section and a 500 mm stainless-steel conveyor.
- Automatic lamp lifting and conveyor belt tracking.
- Variable-speed stainless-steel mesh conveyor.
- Mirror-finish stainless-steel reflectors and forced-air extraction.

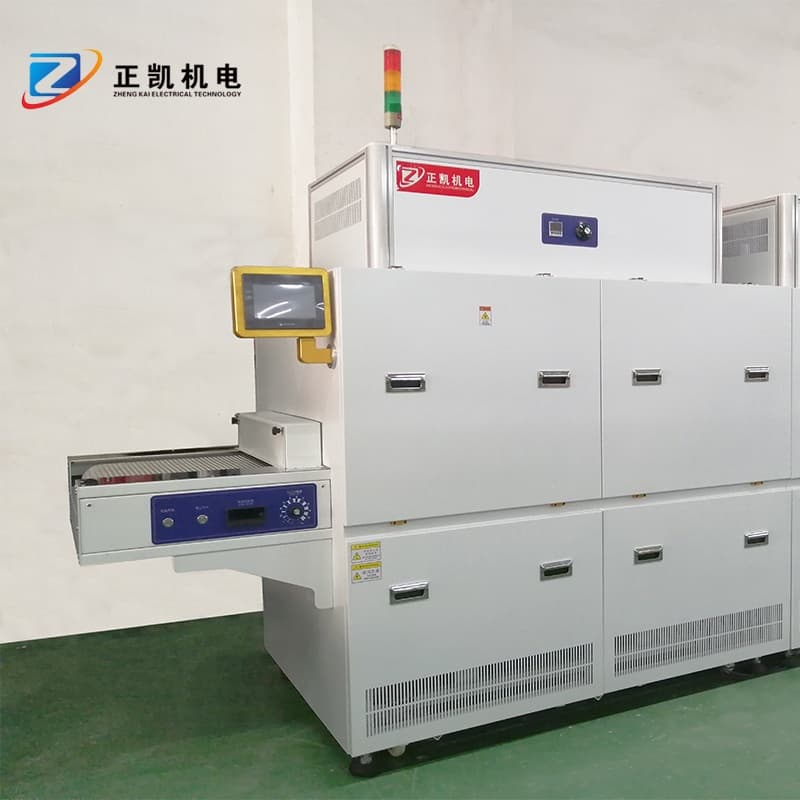

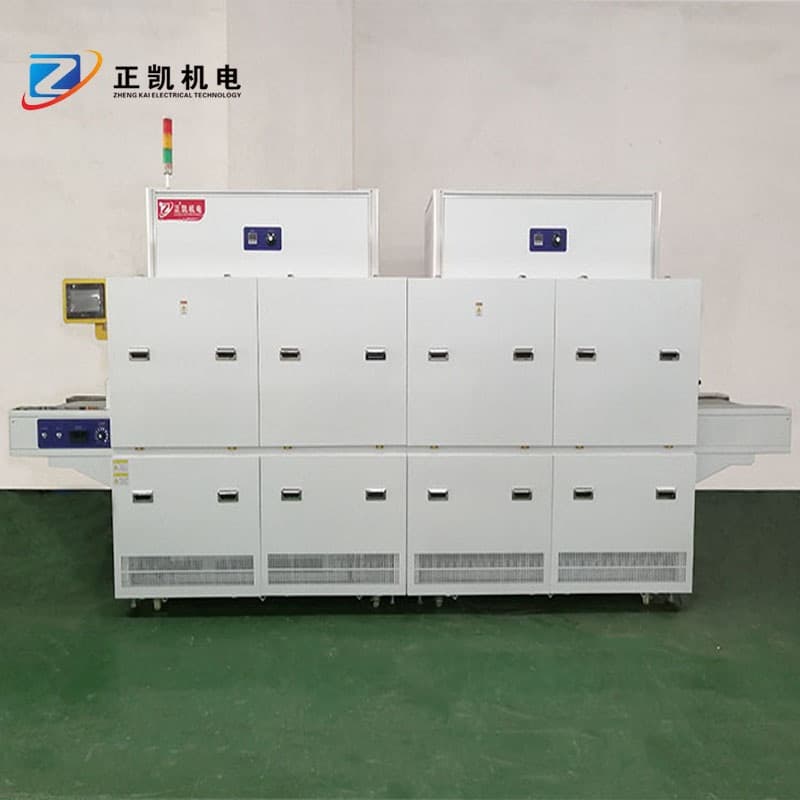

Product Images
Product Introduction
The ZKUV-3090 is a UV surface modification conveyor for silicone products such as watch straps. The documented configuration has a 3200 mm UV section and a 500 mm stainless-steel conveyor.
The machine uses automatic lamp lifting and belt tracking. Conveyor speed is adjustable from 0.1–0.6 m/min, with a geared motor and chain drive. Mirror-finish stainless-steel reflectors and forced-air extraction form part of the treatment section.
Provide the silicone formulation, product dimensions, loading arrangement and required surface result. Confirm the exposure conditions, heating settings and extraction connections using the actual products before selecting the final configuration.
Features and Operation
- Automatic lamp lifting and conveyor belt tracking.
- Variable-speed stainless-steel mesh conveyor.
- Mirror-finish stainless-steel reflectors and forced-air extraction.
Technical Specifications
- Conveyor width
- 500 mm
- UV section length
- 3200 mm
- Conveyor speed
- 0.1–0.6 m/min
- Transfer height
- 900 ±20 mm
- Equipment dimensions
- Approx. L4400 × W1100 × H1900 mm
- Power supply
- AC 380 V, three-phase, 50 Hz
- Installed power
- 10 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
