950 mm Roll-to-Roll Rewinder
The ZKR2R-SL-950 winds continuous strip material received from an upstream machine into rolls.
- 950 mm documented material width
- Automatic tension control
- Web guidance and roll-diameter alarm
Product Images
Product Introduction
The ZKR2R-SL-950 winds continuous strip material received from an upstream machine into rolls.

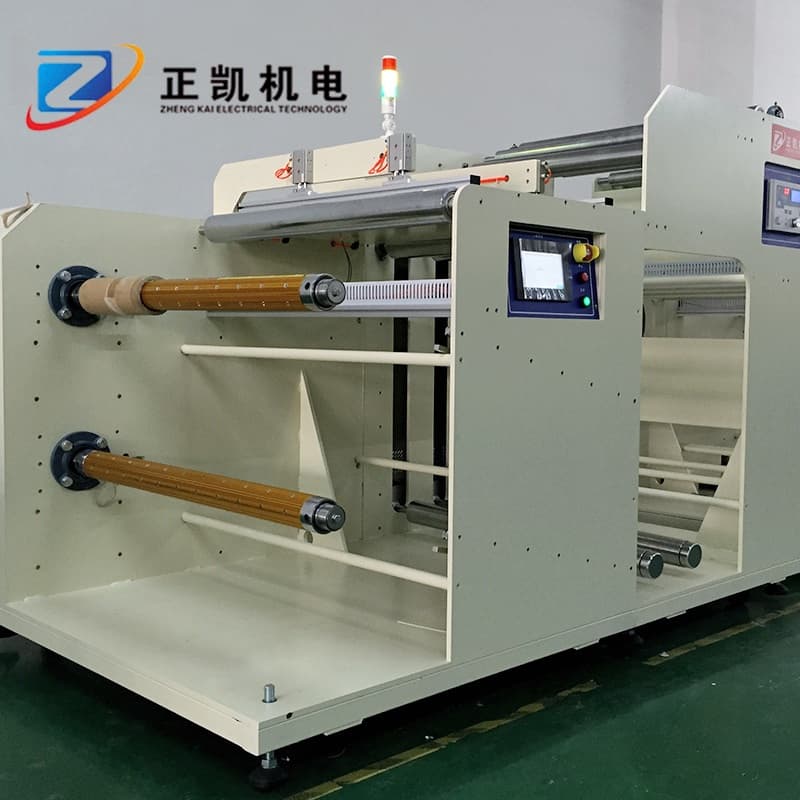

The documented configuration handles 950 mm material width and 0.05–0.16 mm thickness, with a maximum roll outside diameter of 600 mm and a 3-inch core. Two cantilevered air-expanding shafts support front-side roll loading.

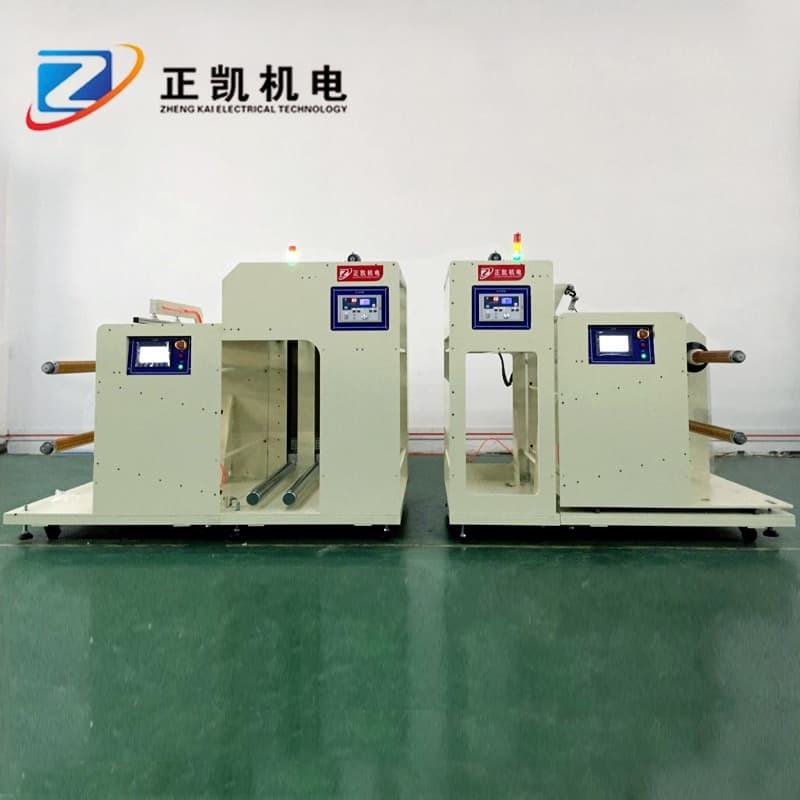

Automatic tension control, a tension-sensing roller and a magnetic-powder clutch regulate winding torque. Web guidance and roll-diameter alarms support operation. Photographs include the rewinding section alongside related line equipment; provide the required supply scope and upstream interface for confirmation.
Features and Operation
- 950 mm documented material width
- Automatic tension control
- Web guidance and roll-diameter alarm
Technical Specifications
- Material width
- 950 mm
- Maximum roll outside diameter
- 600 mm
- Core diameter
- 3 in
- Material thickness
- 0.05–0.16 mm
- Conveyor height
- 1200 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Apparent power
- 1 kVA
Specifications describe the documented configuration. Confirm the final configuration for your application.
