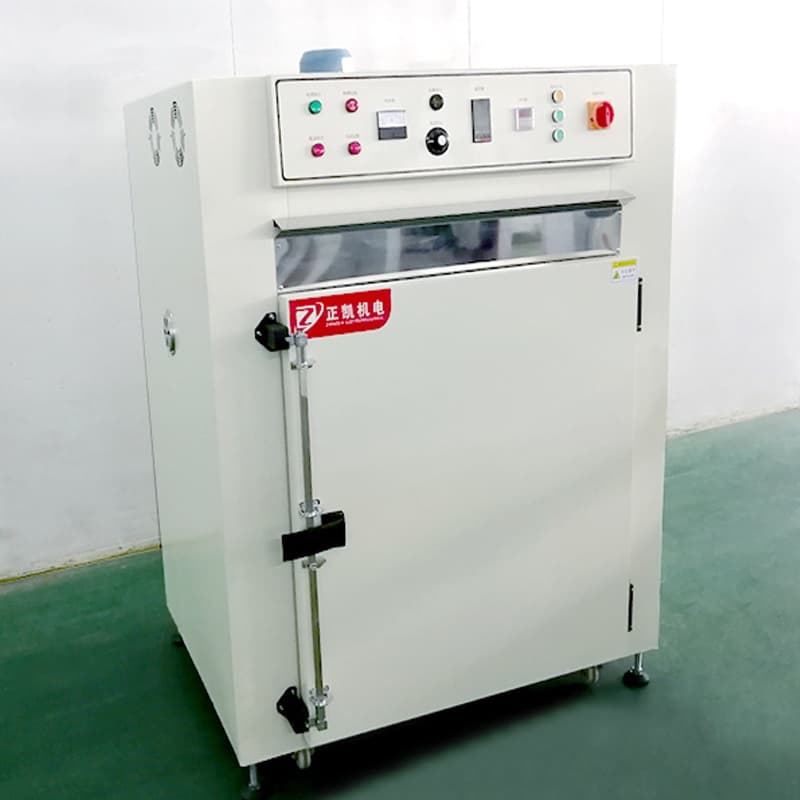

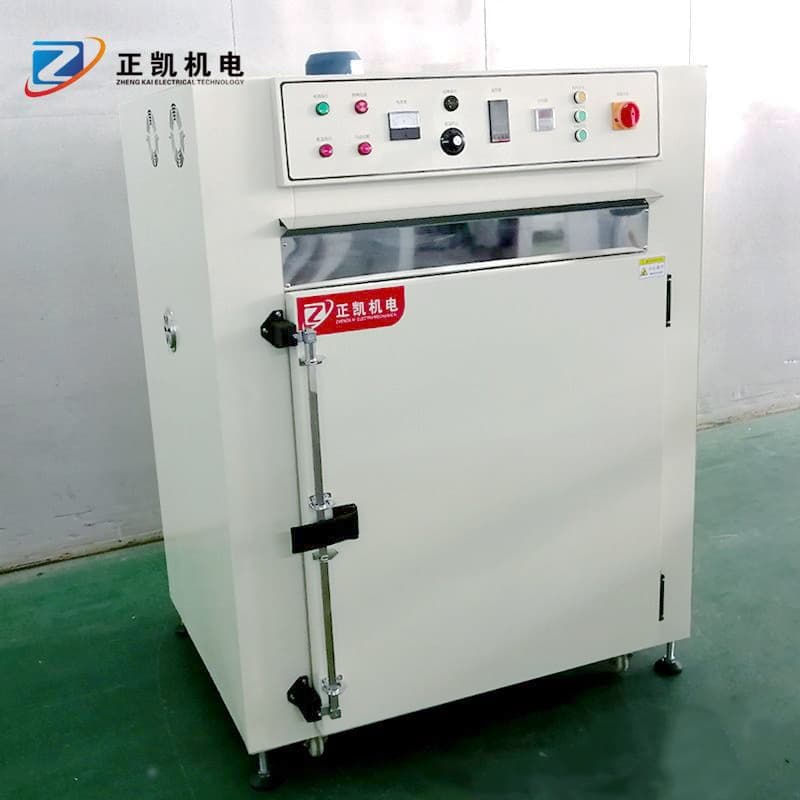

Single-Door Industrial Batch Oven
The ZKMO-5 is a single-door batch oven for industrial material baking and drying. The documented chamber measures W900 × D800 × H1000 mm and uses horizontal circulating airflow.
- Single-door chamber with horizontal airflow.
- Digital PID temperature control and electronic timer.
- SUS430 stainless-steel chamber and air duct.
Product Images
Product Introduction
The ZKMO-5 is a single-door batch oven for industrial material baking and drying. The documented chamber measures W900 × D800 × H1000 mm and uses horizontal circulating airflow.
The oven has 10 shelf levels, with trays available separately. A digital PID controller sets the heating process and an electronic timer supports timed operation. The documented temperature setting range is ambient to 250 °C.
Provide the material, tray dimensions, batch load and required temperature profile to review the configuration. Identify any process emissions or special installation requirements when requesting a quotation. Final operating conditions and suitability depend on the material and loading arrangement.
Features and Operation
- Single-door chamber with horizontal airflow.
- Digital PID temperature control and electronic timer.
- SUS430 stainless-steel chamber and air duct.
Technical Specifications
- Chamber dimensions
- W900 × D800 × H1000 mm
- Shelf levels
- 10
- Temperature range
- Ambient to 250 °C
- Airflow
- Single-sided horizontal
- Timer range
- 0–9999 min
- Power supply
- AC 380 V, three-phase, 50 Hz
- Installed power
- 13 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
