UV Curing Conveyor for Printed Glass
The ZKUV-751 is a UV curing conveyor for printed glass and other printed surfaces.
- One 7.5 kW UV lamp
- 700 mm stainless-steel conveyor
- Adjustable lamp-to-belt distance

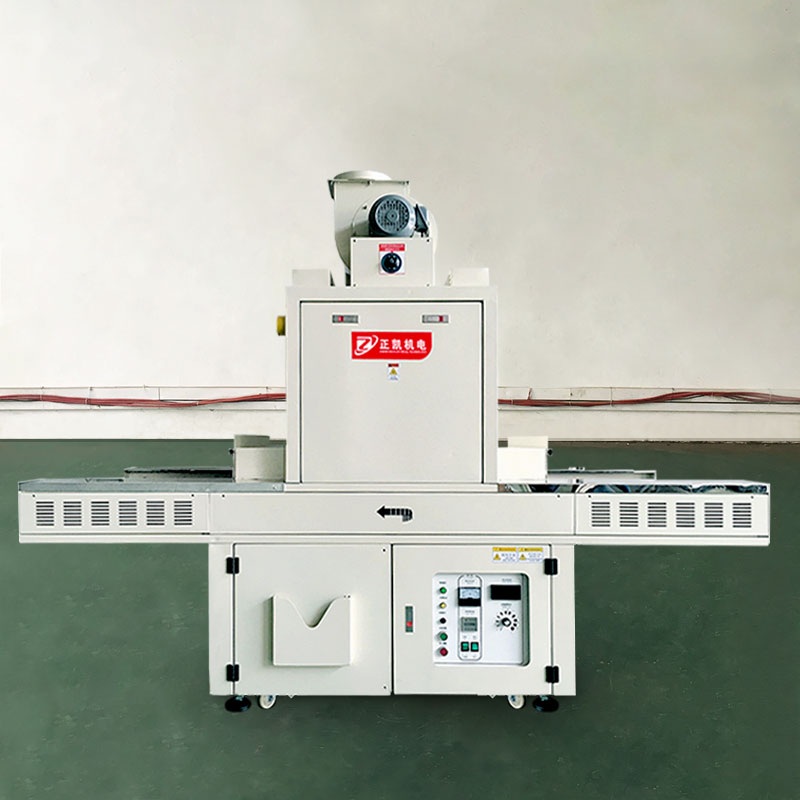

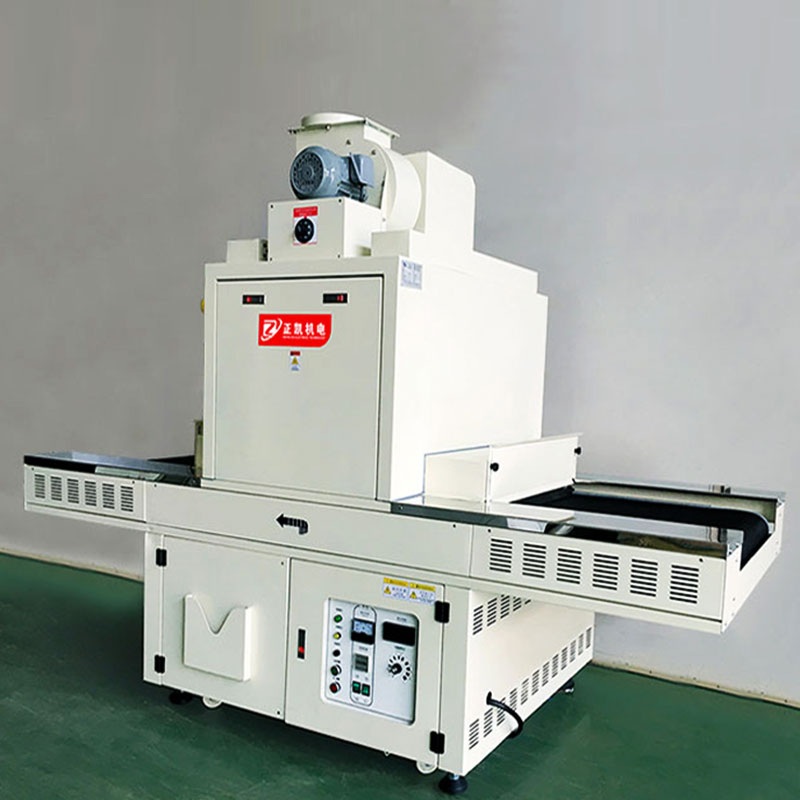

Product Images
Product Introduction
The ZKUV-751 is a UV curing conveyor for printed glass and other printed surfaces.
The documented configuration uses one 7.5 kW UV lamp and a 700 mm stainless-steel conveyor. Lamp luminous length is 625 mm; this is distinct from the conveyor width. Conveyor speed is adjustable from 1 to 5 m/min.
The inlet and outlet opening adjusts from 50 to 580 mm, and lamp-to-belt distance adjusts from 100 to 600 mm. Retractable light-shield curtains are fitted around the loading and unloading sections. Share the substrate, ink and workpiece dimensions to confirm the suitable setup.
Features and Operation
- One 7.5 kW UV lamp
- 700 mm stainless-steel conveyor
- Adjustable lamp-to-belt distance
Technical Specifications
- Conveyor width
- 700 mm
- UV lamp
- 1 × 7.5 kW
- Conveyor speed
- 1–5 m/min
- Lamp luminous length
- 625 mm
- Inlet/outlet opening height
- 50–580 mm
- Lamp-to-belt distance
- 100–600 mm
- Overall dimensions (L × W × H)
- Approx. 2440 × 1020 × 2420 mm
- Power supply
- 380 V AC, three-phase, 50 Hz
- Connected power
- 8.5 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
