Glass-Door LCD and LCM Aging Oven
The ZKLHMO-10S is an aging oven for LCD and LCM products. The documented chamber measures W1800 × D1000 × H1700 mm and operates from ambient temperature up to 80 °C.

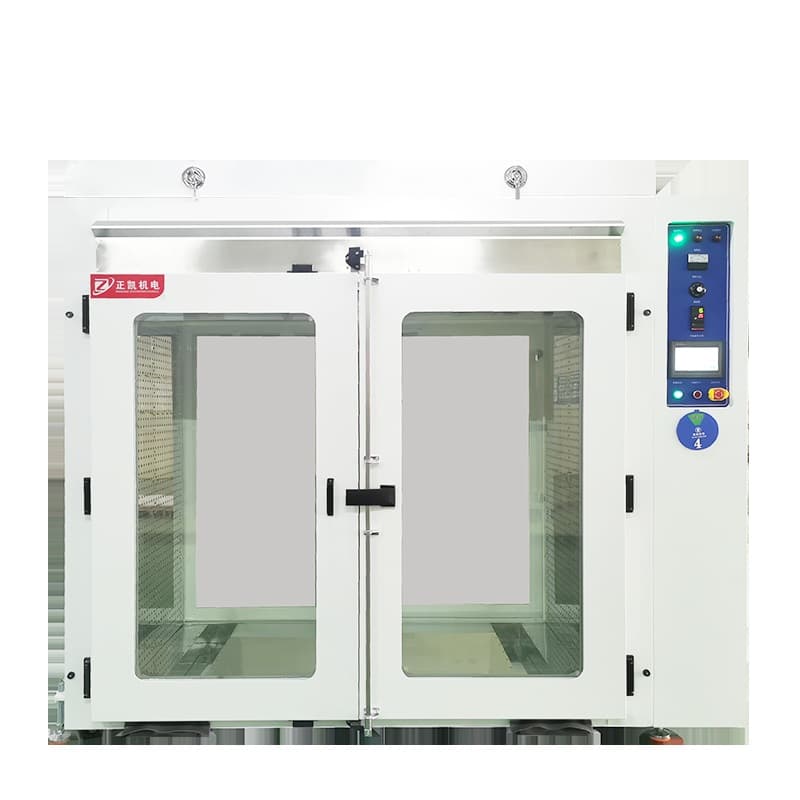

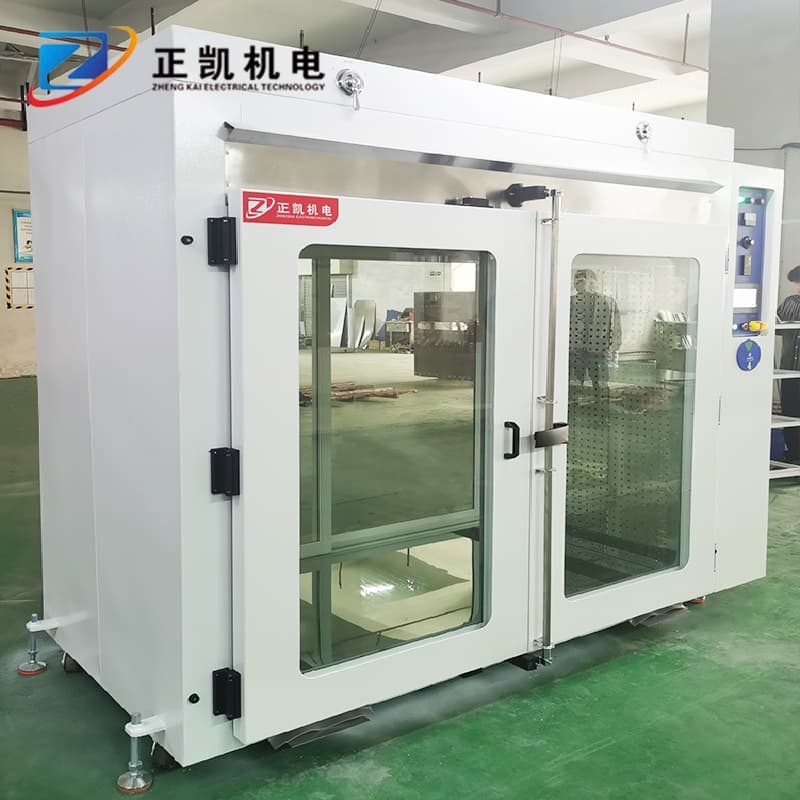

- Front glass doors and rear sliding glass doors.
- Ramp-assisted trolley loading.
- PLC operator interface and digital PID temperature control.
Product Images
Product Introduction
The ZKLHMO-10S is an aging oven for LCD and LCM products. The documented chamber measures W1800 × D1000 × H1700 mm and operates from ambient temperature up to 80 °C.
Front glass doors and rear sliding glass doors allow the products to be observed. A ramp supports trolley entry and removal. The configuration includes four 220 V sockets inside the chamber for the aging setup; the required load and fixtures should be specified for the application.
Horizontal airflow, digital PID temperature control and a PLC operator interface manage the process. Provide the product dimensions, trolley layout, electrical load and aging cycle to review the final configuration.
Features and Operation
- Front glass doors and rear sliding glass doors.
- Ramp-assisted trolley loading.
- PLC operator interface and digital PID temperature control.
Technical Specifications
- Chamber dimensions
- W1800 × D1000 × H1700 mm
- Temperature range
- Ambient to 80 °C
- Internal 220 V sockets
- 4
- Control system
- PLC and operator interface
- Equipment dimensions
- Approx. W2500 × D1150 × H2400 mm
- Power supply
- AC 380 V, three-phase, 50 Hz
- Installed power
- 13 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
