Double-Sided UV Surface Modification Machine
The ZKUV-100150 is a double-sided UV surface modification machine developed for silicone products such as watch straps. A conveyor carries the products through the treatment section.
- Double-sided UV treatment for silicone products.
- Lamp-height setting through the operator interface.
- Automatic belt tracking and adjustable conveyor speed.

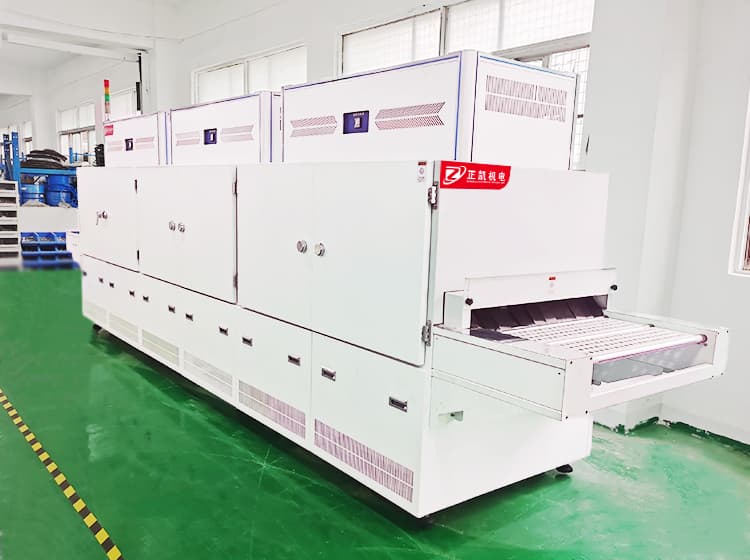

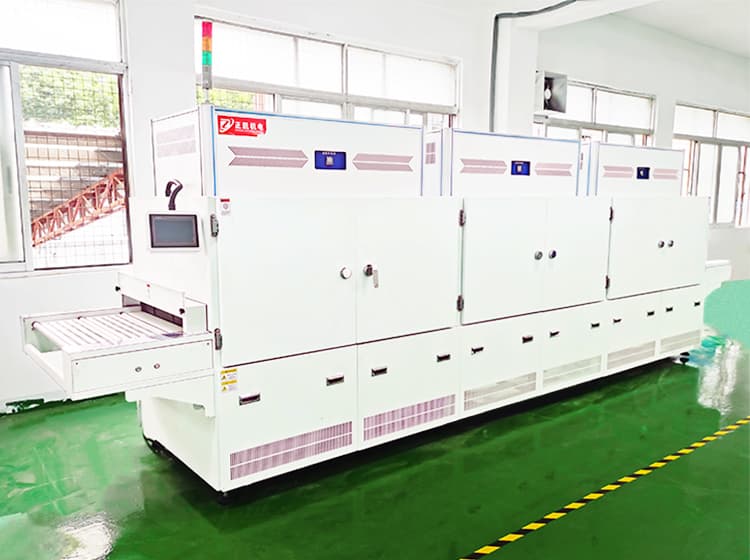

Product Images
Product Introduction
The ZKUV-100150 is a double-sided UV surface modification machine developed for silicone products such as watch straps. A conveyor carries the products through the treatment section.
The documented configuration uses PLC and operator-interface control. Lamp height can be set through the operator interface, and the conveyor has automatic belt tracking. Motor-driven transport uses a geared and chain drive.
Provide the silicone formulation, product geometry, loading arrangement and required surface result for configuration review. The treatment response and process settings should be assessed with the actual products; lamp specification and working width need to be confirmed for the selected build.
Features and Operation
- Double-sided UV treatment for silicone products.
- Lamp-height setting through the operator interface.
- Automatic belt tracking and adjustable conveyor speed.
Technical Specifications
- Conveyor speed
- 0.1–1 m/min
- Control system
- PLC and operator interface
- Reflector
- Mirror-finish stainless steel
- Insulation thickness
- 20 mm
Specifications describe the documented configuration. Confirm the final configuration for your application.
