Inline Five-Layer Hot-Air Tunnel Furnace
The ZKCO-540-5 bakes camera-module (CCM) products after dispensing. Its five-layer, two-column conveyor arrangement uses integrated splitting and merging mechanisms to connect the oven to upstream and downstream equipment.
- Five-layer, two-column stainless-steel conveyor.
- Integrated tray splitting and merging.
- Hot-air baking, air cooling and rear tray return.

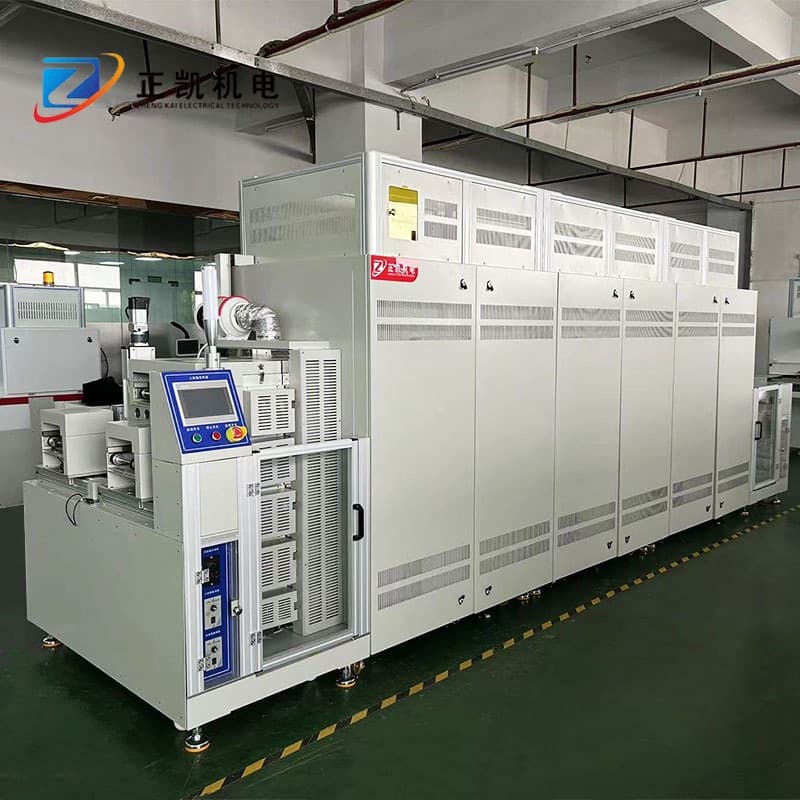

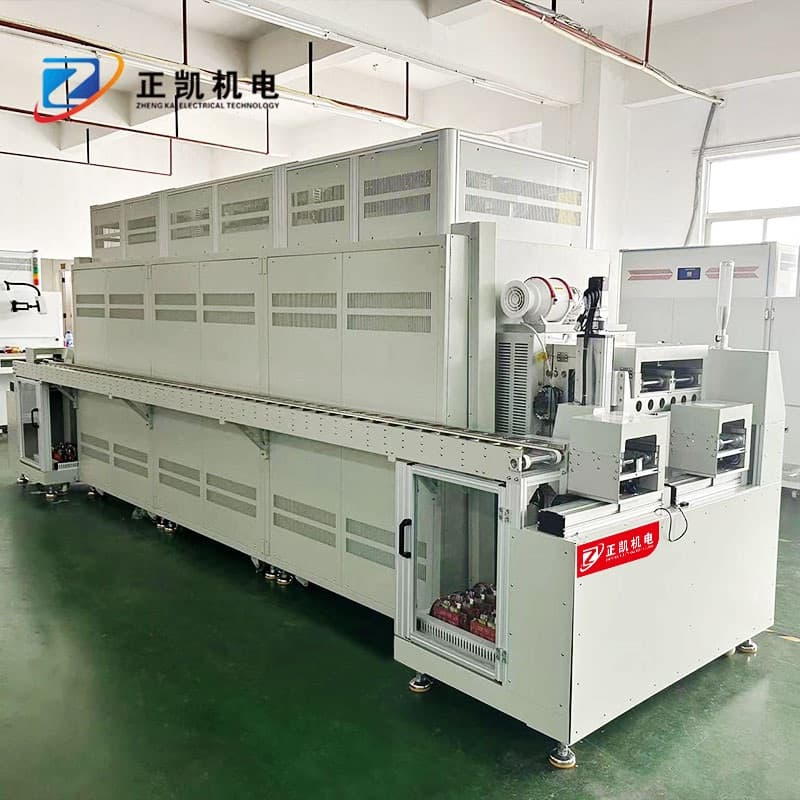

Product Images
Product Introduction
The ZKCO-540-5 bakes camera-module (CCM) products after dispensing. Its five-layer, two-column conveyor arrangement uses integrated splitting and merging mechanisms to connect the oven to upstream and downstream equipment.
Hot-air circulation heats the loaded trays. The documented process uses 180 × 180 × 10 mm trays with 16 pieces per tray and an 85 °C baking temperature. The 70-minute cycle comprises 10 minutes of heating and 60 minutes of holding.
The system includes automatic tray transfer at both ends, an air-cooling section and a rear return conveyor. Provide your tray layout, adhesive, temperature profile and required line throughput to review the configuration.
Features and Operation
- Five-layer, two-column stainless-steel conveyor.
- Integrated tray splitting and merging.
- Hot-air baking, air cooling and rear tray return.
Technical Specifications
- Tray size
- 180 × 180 × 10 mm
- Pieces per documented tray
- 16
- Documented baking temperature
- 85 °C
- Documented baking cycle
- 70 min: 10 min heating + 60 min holding
- Conveyor arrangement
- 5 layers, 2 columns
- Transfer height
- 950 ±20 mm
- Cooling section length
- 200 mm
Specifications describe the documented configuration. Confirm the final configuration for your application.
