Dust-Removal, Laminating and Cutting Machine
The ZKNC-600 removes surface particles from ITO film, applies protective film and cuts the film before the product enters a receiving tray.
- Adhesive-web dust removal
- Protective-film lamination
- Pneumatic film cutter

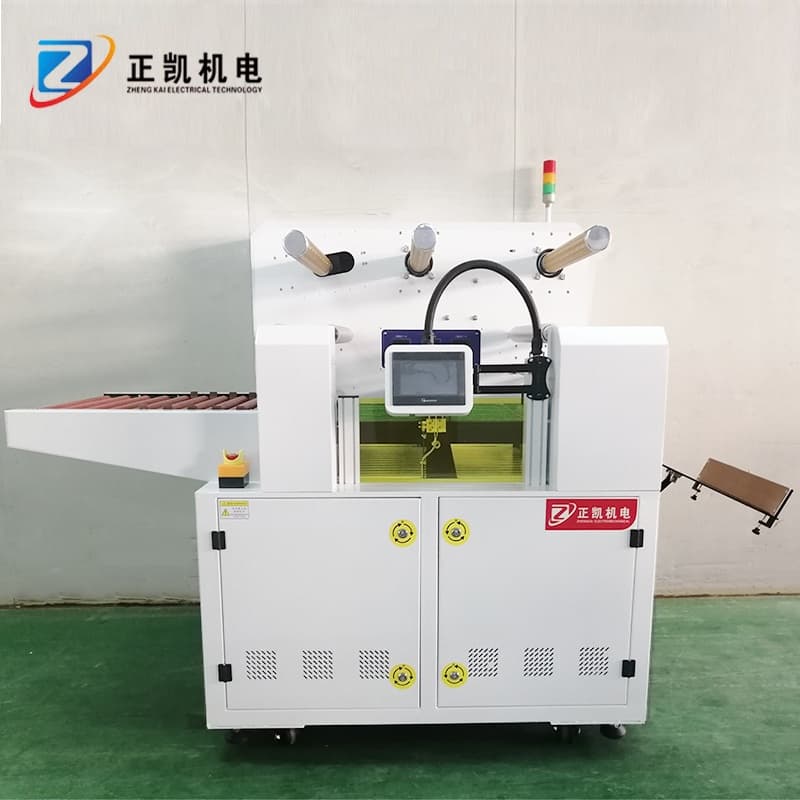

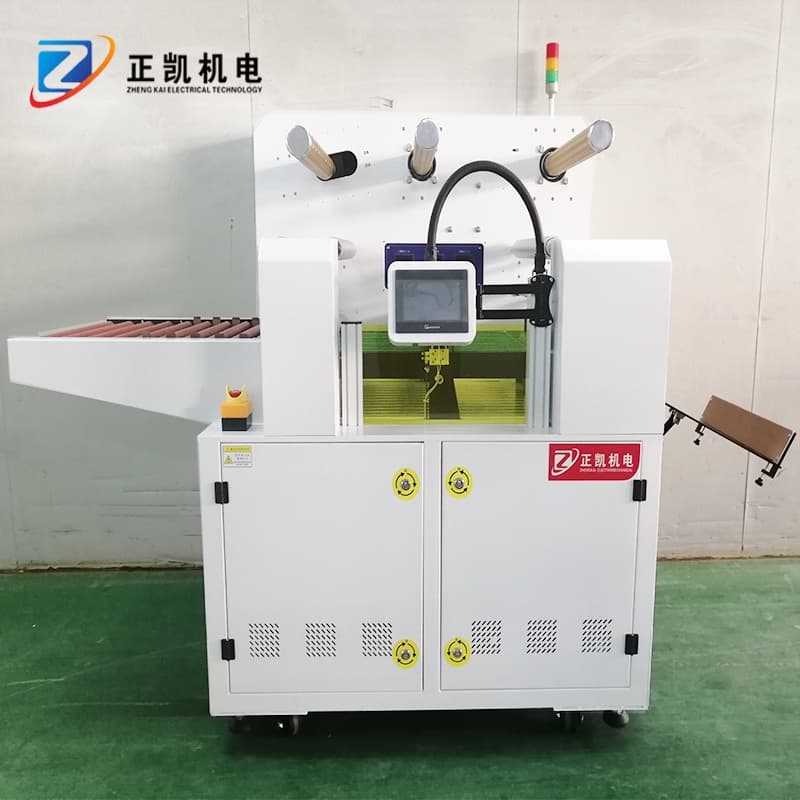

Product Images
Product Introduction
The ZKNC-600 removes surface particles from ITO film, applies protective film and cuts the film before the product enters a receiving tray.
The documented process combines alignment, pneumatic-clamp feeding, adhesive-web dust removal and protective-film lamination. A cylinder-driven blade cuts the protective film between the laminating and outlet rollers.
The configuration handles a documented 400 ×500 mm glass or film format with adjustable conveying speed of 1–3 m/min. PLC and operator-interface controls manage operation. Provide the substrate and contamination requirements to confirm the cleaning and laminating setup.
Features and Operation
- Adhesive-web dust removal
- Protective-film lamination
- Pneumatic film cutter
Technical Specifications
- Documented substrate size
- 400 × 500 mm
- Conveying speed
- 1–3 m/min
- Conveyor height
- 1000 ± 20 mm
- Conveyor type
- PVC belt
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 1 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
