Silicone UV Surface Treatment Conveyor

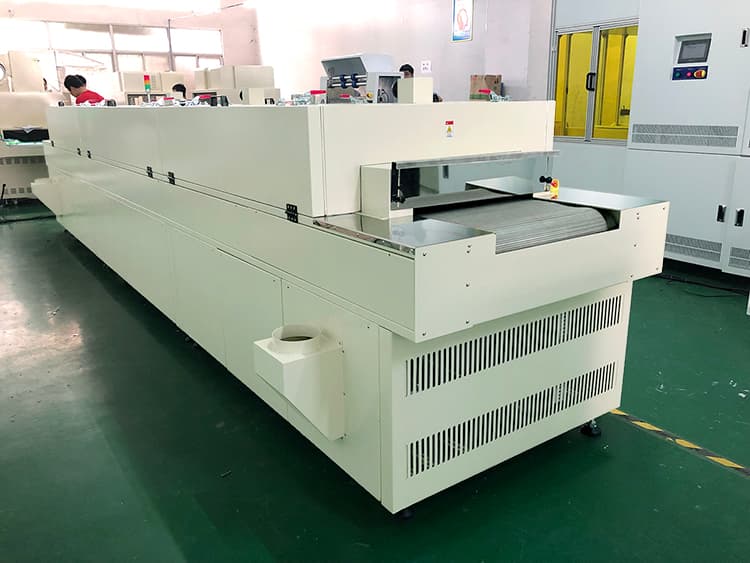

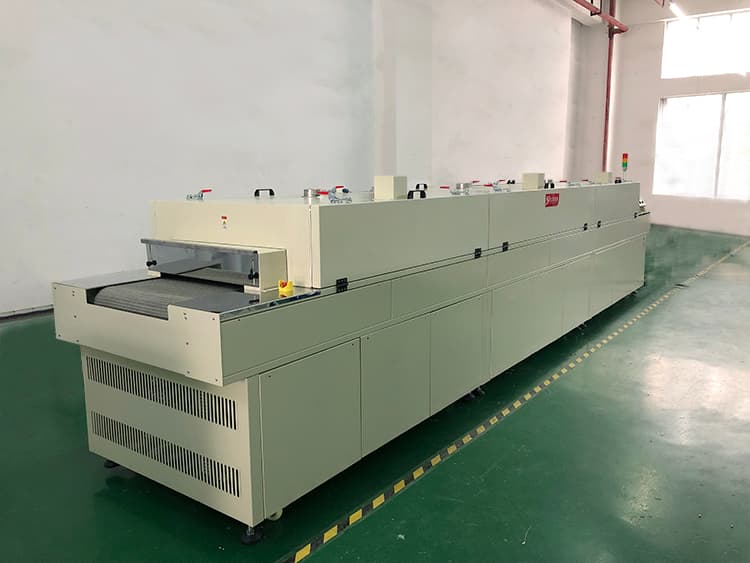

The ZKUV-5090 is a UV surface treatment conveyor for silicone products such as watch straps. The archived configuration uses a stainless-steel mesh conveyor and a 5000 mm UV section.
- 5000 mm UV treatment section.
- Variable-speed stainless-steel mesh conveyor.
- Mirror-finish reflectors and downward forced-air extraction.
Product Images
Product Introduction
The ZKUV-5090 is a UV surface treatment conveyor for silicone products such as watch straps. The archived configuration uses a stainless-steel mesh conveyor and a 5000 mm UV section.
The specification lists a 550 mm conveyor width and a 500 mm working width. These values describe different dimensions; confirm the usable irradiation area and product arrangement for the intended process. Conveyor speed is adjustable from 0.2 to 1 m/min.
The treatment section uses mirror-finish stainless-steel reflectors and downward forced-air extraction. Provide the silicone formulation, workpiece dimensions, target surface characteristics and production requirements to select the operating conditions.
Features and Operation
- 5000 mm UV treatment section.
- Variable-speed stainless-steel mesh conveyor.
- Mirror-finish reflectors and downward forced-air extraction.
Technical Specifications
- Conveyor width
- 550 mm
- Documented working width
- 500 mm
- UV section length
- 5000 mm
- Conveyor speed
- 0.2–1 m/min
- Equipment dimensions
- Approx. L6000 × W1100 × H1500 mm
- Power supply
- AC 380 V, three-phase, 50 Hz
- Installed power
- 14 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
