Touch-Panel Film Laminating and Cutting Machine
The ZKFM-350-CQSL applies protective film to touch-panel products and cuts them to the required sheet dimensions.
- 350 mm maximum laminating width
- Vacuum roller for film positioning
- Product transfer to a downstream UV conveyor

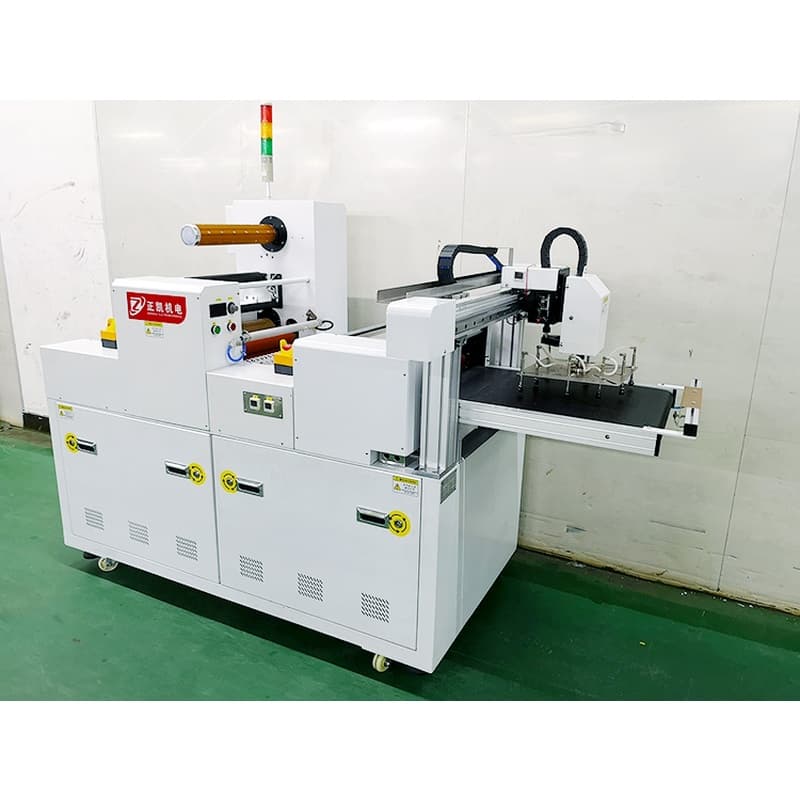

Product Images
Product Introduction
The ZKFM-350-CQSL applies protective film to touch-panel products and cuts them to the required sheet dimensions.

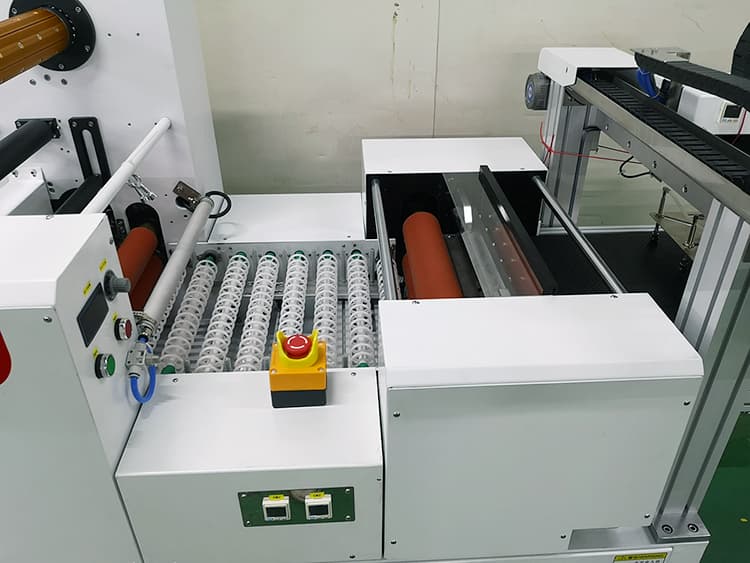

The maximum laminating and cutting width is 350 mm, with product cut lengths from 150 to 400 mm. A servo-driven upper vacuum roller holds the film during cutting and application. Product cutting uses a motor-driven cam and reciprocating upper blade.
Automatic alignment positions the products before processing. The documented handling arrangement lifts the finished piece and rotates it 90 degrees for transfer to a downstream UV conveyor. PLC touchscreen controls support manual operation and linked automatic operation. Provide the panel, film and downstream interfaces to confirm the layout.
Features and Operation
- 350 mm maximum laminating width
- Vacuum roller for film positioning
- Product transfer to a downstream UV conveyor
Technical Specifications
- Maximum laminating width
- 350 mm
- Maximum cutting width
- 350 mm
- Cut length
- 150–400 mm
- Maximum protective-film roll diameter
- 300 mm
- Conveyor height
- 950 ± 20 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 3 kW
Specifications describe the documented configuration. Confirm the final configuration for your application.
