Automatic Glass Cassette Unloader
The ZKFL-550 collects glass substrates from an upstream process and stores them individually in cassettes. Operators replace the cassettes manually.
- Automatic glass collection into cassettes
- Manual cassette replacement
- Position sensing and upstream interface

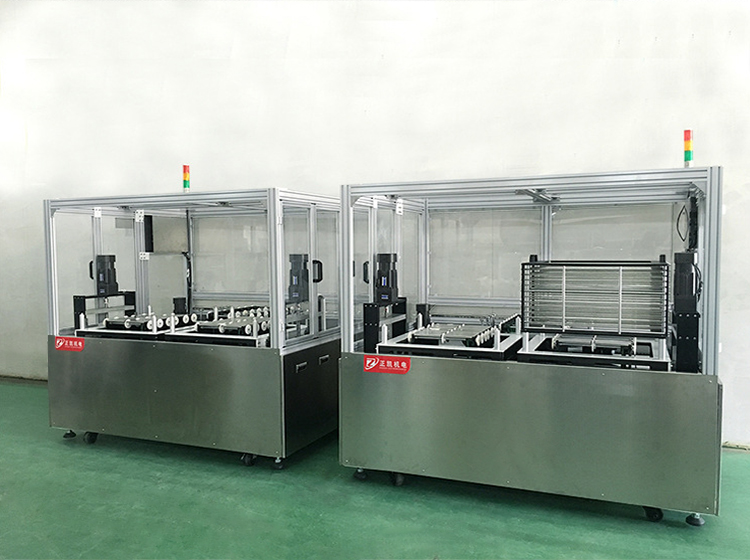

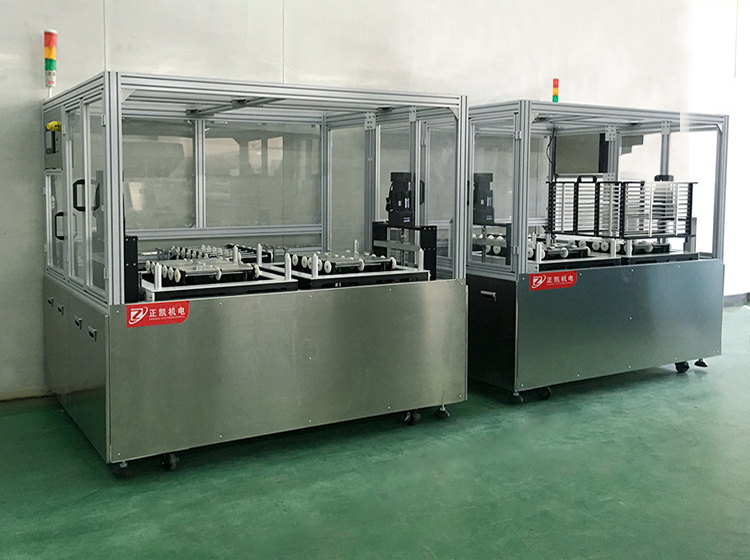

Product Images
Product Introduction
The ZKFL-550 collects glass substrates from an upstream process and stores them individually in cassettes. Operators replace the cassettes manually.
The documented configuration handles 550 × 650 mm glass substrates, 0.3–1.1 mm thick. Substrate conveying speed is adjustable from 1 to 4 m/min. A lifting mechanism positions the cassette for receiving each sheet.
Cassette-position sensing, material detection and upstream fault notification support line integration. Four dry contacts are reserved for automatic linking. Provide the cassette dimensions and upstream conveyor height to confirm the interface.
Features and Operation
- Automatic glass collection into cassettes
- Manual cassette replacement
- Position sensing and upstream interface
Technical Specifications
- Substrate size
- 550 × 650 mm
- Glass thickness
- 0.3–1.1 mm
- Conveying speed
- 1–4 m/min
- Conveyor height
- 1050 ± 20 mm
- Power supply
- 220 V AC, single-phase, 50 Hz
- Connected power
- 600 W
Specifications describe the documented configuration. Confirm the final configuration for your application.
