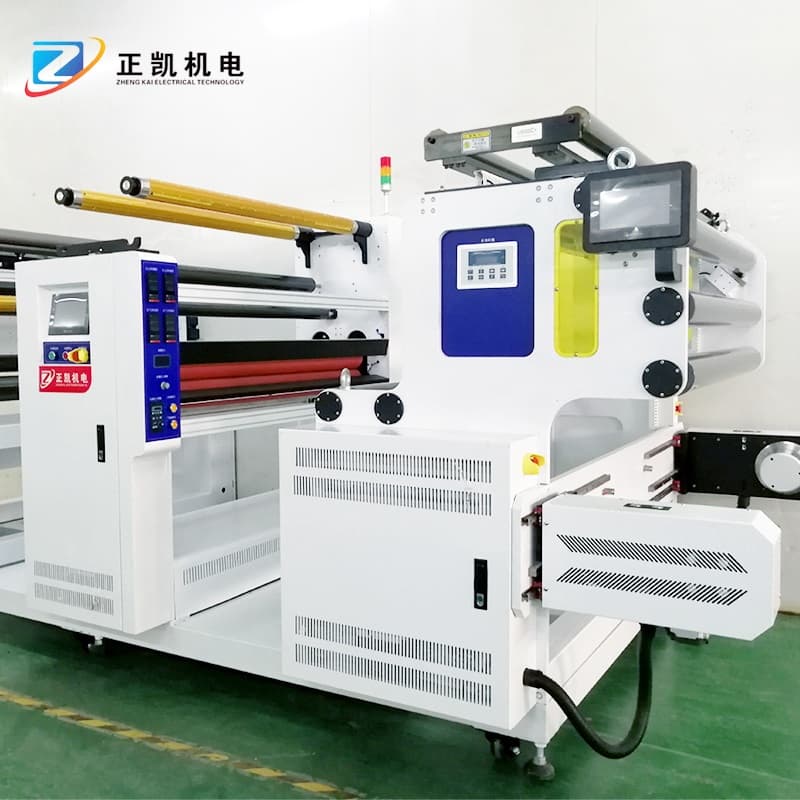

ZK-R2R-FM-1300 roll-to-roll laminating equipment

Optical Film

Equipment for roll material, film lamination, ITO-film cutting, web guiding, tension control and rewinding.

Find Equipment for Your Process

Browse 12 products associated with Optical Film. Filter by equipment category, then open a product to review its configuration.

View all 12 products

12 matching products · Select a product to see images and specifications.

Roll-to-Roll Equipment (2)

Browse in product center

For film cleaning, protection or handling within the documented material process.

Laminating & Cutting Equipment (7)

Browse in product center

Protective-film lamination and fixed-length sheet cutting of PET or ITO film rolls.

Hot-roll lamination of dry film onto ITO film in touch-panel production.

For film cleaning, protection or handling within the documented material process.

For film cleaning, protection or handling within the documented material process.

For film cleaning, protection or handling within the documented material process.

Manual Dry-Film Laminator ZKL-M25R

Laminating & Cutting Equipment · ZKL-M25R

Manual Dry-Film Laminator

The ZKL-M25R laminates dry film for yellow-light processes and can also be used for OCA bonding and protective-film application on finished or semi-finished panels. Operators feed individual panels through heated pressure rollers; transport speed is adjustable to suit the film and panel.

View product

For film cleaning, protection or handling within the documented material process.

Industrial Automation (1)

Browse in product center
Double-Sided Sheet Cleaning Machine ZKCC-650

Industrial Automation · ZKCC-650

Double-Sided Sheet Cleaning Machine

The ZKCC-650 cleans dust and static from ITO film and glass sheets used in touch-panel production. Sheets travel through cleaning rollers on an antistatic PU belt, with cleaning applied to both sides.

View product

For film cleaning, protection or handling within the documented material process.

Tunnel Furnaces (2)

Browse in product center
Roll-to-Roll ITO Film Annealing Line ZKLCO-8-20-R2R

Tunnel Furnaces · ZKLCO-8-20-R2R

Roll-to-Roll ITO Film Annealing Line

The ZKLCO-8-20-R2R anneals ITO film used in touch-panel production. Film is unwound, heated with infrared and hot air, cooled and rewound. The documented configuration handles 650 mm film on an 800 mm conveyor, with a 20 m heating section.

View product

For film cleaning, protection or handling within the documented material process.

Roll-to-Roll ITO Film Annealing Line ZKLCO-9-25-R2R

Tunnel Furnaces · ZKLCO-9-25-R2R

Roll-to-Roll ITO Film Annealing Line

The ZKLCO-9-25-R2R is a roll-to-roll annealing line for ITO film used in touch-panel production. Film passes from unwinding through infrared and hot-air heating, then cooling and rewinding. The archived configuration specifies 800 mm film width, a 900 mm conveyor and a 25 m heating section.

View product

For film cleaning, protection or handling within the documented material process.

Materials & Processes

Equipment options include roll-to-roll dry-film and PET protective-film lamination, ITO-film protective lamination and cutting, EPC web guiding, tension control and rewinding. Applicability to a specific optical-film product must be confirmed from the actual material stack and process requirements.

Materials

  • Roll material
  • Dry film
  • PET protective film
  • ITO film

Process options

  • Roll-to-roll lamination

  • Protective-film lamination and cutting

  • EPC web guiding and tension-controlled transport

  • Rewinding

Tell Us About Your Process

Send the following details to discuss equipment for Optical Film.

  • Base material and film stack

    Provide the material names, layer order and whether lamination is single- or double-side.

  • Dimensions and roll data

    Provide widths, thicknesses, core sizes, outer diameters and roll weights.

  • Process and output

    Provide line speed, heating requirement, tension and guiding targets, plus rewinding or cutting output requirements.

Process considerations
  • Material and film dimensions

    Confirm base-material width and thickness plus film width and thickness.

  • Roll information

    Confirm roll core, outer diameter and roll weight.

  • Lamination and web handling

    Confirm film stack, lamination method, speed, tension, guiding and winding requirements.

  • Cutting and collection

    For sheet output, confirm cut size, spacing and collection method.

  • Bubbles, wrinkles and web waviness

    The roll-to-roll specification requires the laminated surface to avoid defects that affect the following exposure process.

  • Web alignment through lamination and rewinding

    The equipment uses EPC guiding at material entry and rewinding.
